| 适用环境 | • II类--工厂气体，III类--粉尘 • Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | • Ex II 2GD • Ex eb IIC Gb, Ex tb IIIC Db |
| IECEx防护类别代码 | • Ex eb IIC Gb • Ex tb IIIC Db IP66/68 • 用于本安电路时，格兰头需配一个蓝色端盖 |
| IP防护等级 | • IP66 , IP68（5 巴 30 分钟） |
| 电缆密封接头材质 | • 尼龙PA 6 |
| 密封材料 | • 氯丁橡胶，硅胶 |
| 工作温度 | • 氯丁橡胶: -40°C to +80°C • 硅胶: -60°C to +80°C |
| 螺纹类型 | • 公制，NPT。其他螺纹可按要求提供。 |
| 电缆类型 | • 非铠装 |
| 附件 | • 锁紧螺母，垫圈，圆顶堵头，防尘帽 |
| 注意 | • 所有附件需单独订购 |

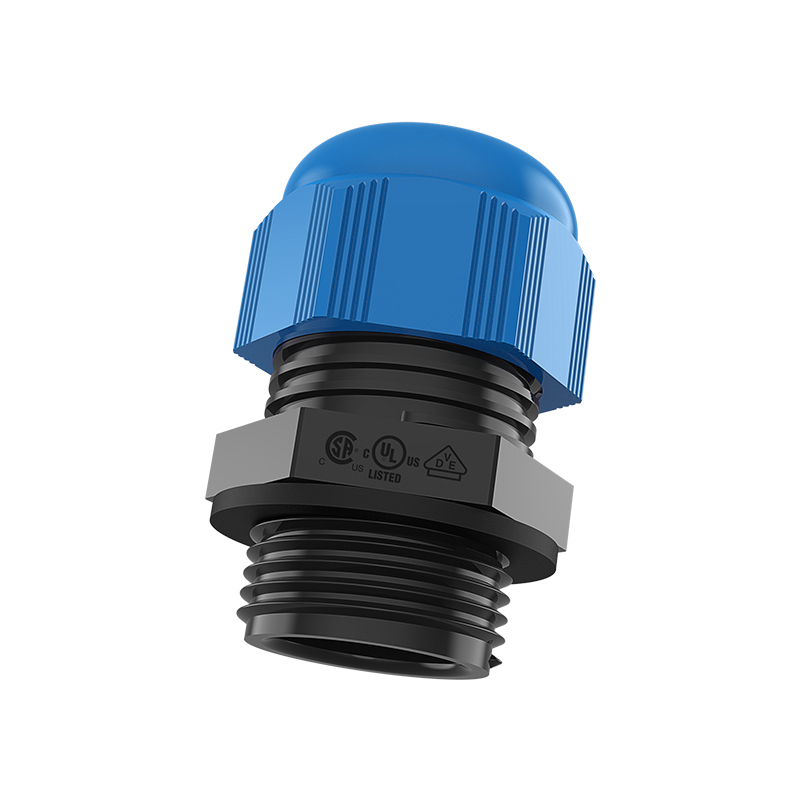

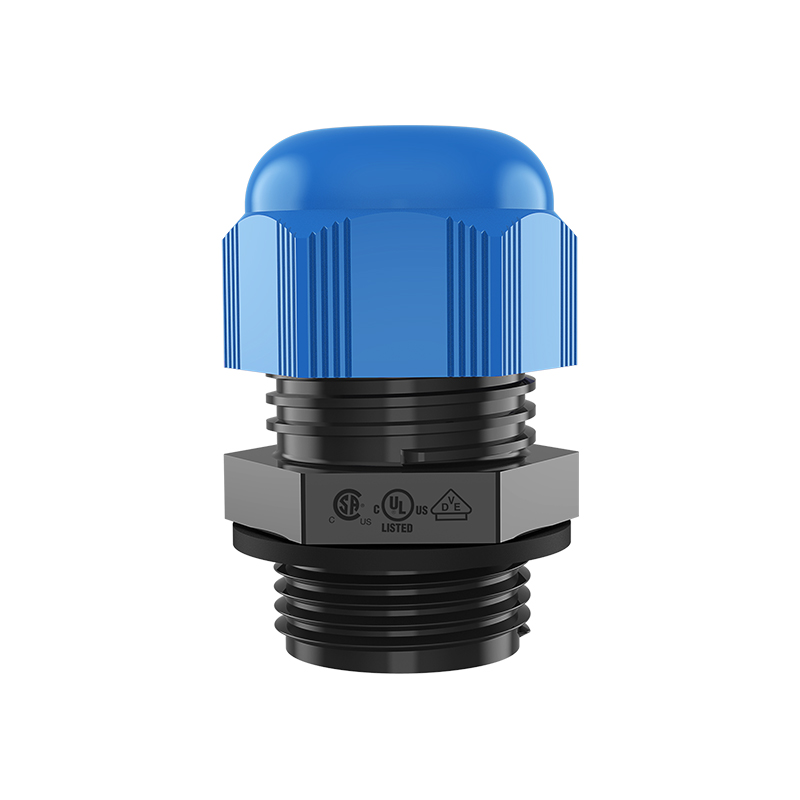

II类工业气体，III类粉尘环境适用。
可用于4J低冲击应用。
符合Ex eb，Ex tb和Ex ib防爆标准，适用Zone 1/2, Zone 21/ 22危险区域。
本质安全环境配套浅蓝色端盖
单密封与双密封可选，夹持范围广。
适用环境温度-60℃~+80℃。
IP66/IP68最高防护等级。

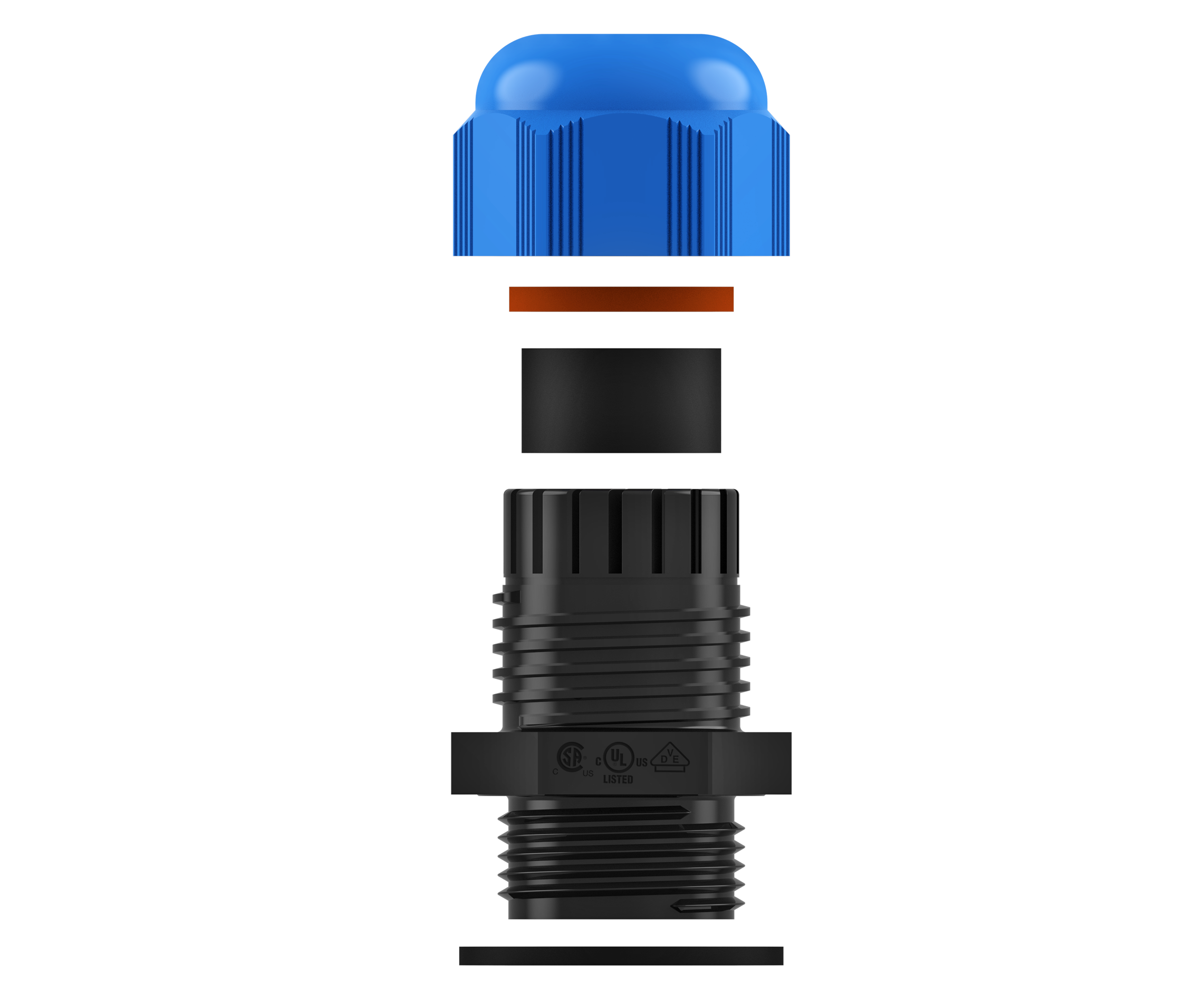

高品质应力消除与密封设计，适用于常规危险区域应用，性能可靠。
通过ATEX，IECEx，EAC，CCC，INMETRO等防爆认证，并取得DNV船级社认证。
For applications in explosive environments.
These cable glands shall have a light blue colored cap.
Can be used for 4J low impact applications.
Compliant with Ex eb and Ex tb safety standards.
Easy assembly.
Single and double seal options with wide clamping range
High quality strain relief and sealing, reliable performance for standard hazardous area applications.
Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).
ATEX/IECEx certified along with various other approvals - see full technical details.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | IMQ 13 ATEX 010X | EN 60079-0, 7, 31 |
 |
IECEx | IECEx IMQ 13.0003X | IEC 60079-0, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-7, 31 |
 |
INMETRO | DNV 18.0150 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WV | |
 |
UKCA | CML 21UKEX3473X | |
 |
CCC | No 2021312313000412 |

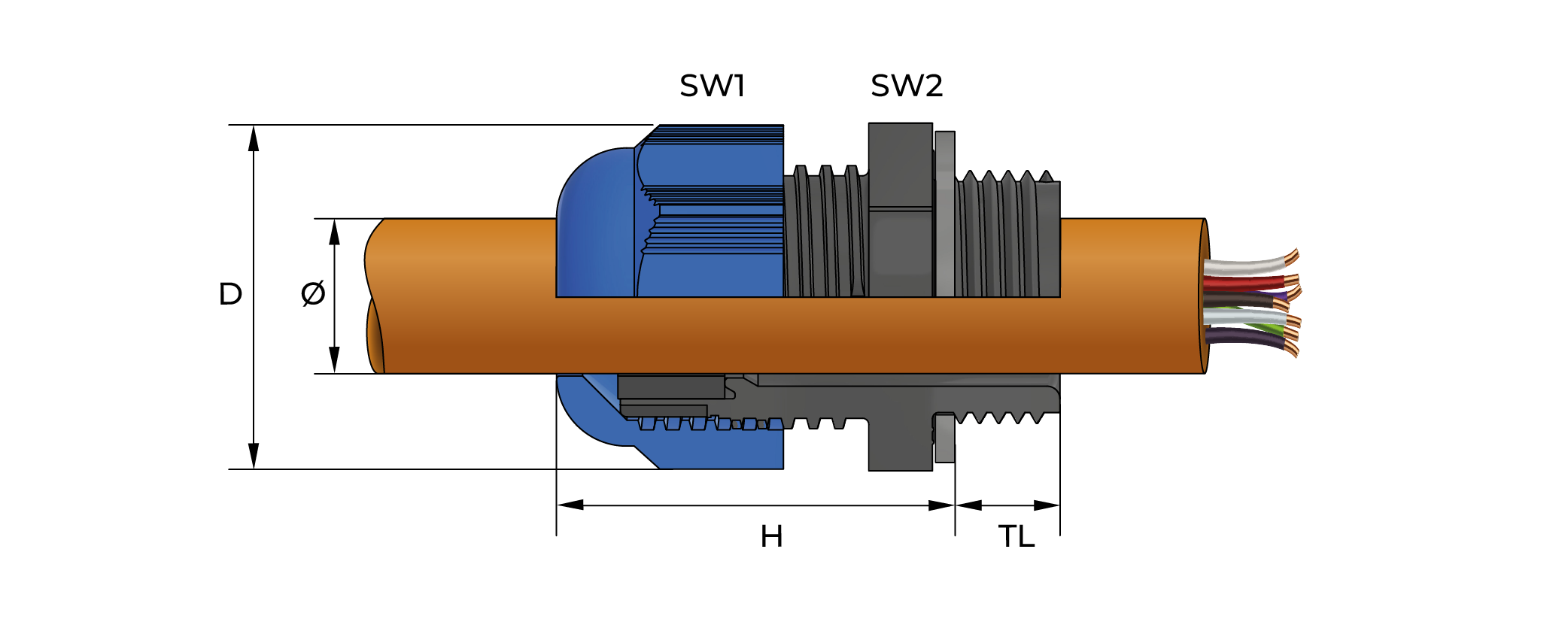

| Thread Size | Cable Ø | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|
| M20x1.5 | 5.0 - 10.0 | 10.0 | 22/24 | 27.0 | 32.2 | BMI-SX2 |
| M20x1.5 | 6.0 - 12.0 | 10.0 | 24/24 | 27.0 | 32.4 | BMI-X2 |
| M20x1.5 | 6.0 - 12.0 | 15.0 | 24/24 | 27.0 | 32.4 | BMI-X2L |
| M20x1.5 | 10.0 - 14.0 | 10.0 | 27/27 | 30.9 | 31.9 | BMI-X3 |
| M20x1.5 | 10.0 - 14.0 | 15.0 | 27/27 | 30.9 | 31.9 | BMI-X4 |
| M25x1.5 | 10.0 - 14.0 | 10.0 | 27/27 | 30.9 | 31.9 | BMI-SX5 |
| M25x1.5 | 11.0 - 17.0 | 10.0 | 29/29 | 32.5 | 37.7 | BMI-XEU25 |
| M25x1.5 | 13.0 - 18.0 | 15.0 | 33/33 | 37.2 | 38.4 | BMI-X6 |
| M25x1.5 | 13.0 - 18.0 | 10.0 | 33/33 | 37.2 | 38.4 | BMI-X5 |
| M32x1.5 | 13.0 - 18.0 | 10.0 | 33/36 | 41.0 | 38.4 | BMI-SX7 |
| M32x1.5 | 15.0 - 21.0 | 10.0 | 36/36 | 41.0 | 42.3 | BMI-XEU32 |
| M32x1.5 | 18.0 - 25.0 | 15.0 | 42/42 | 47.1 | 43.3 | BMI-X7 |
| M40x1.5 | 19.0 - 28.0 | 10.0 | 46/46 | 52.4 | 47.4 | BMI-XEU40 |
| M40x1.5 | 19.0 - 28.0 | 15.0 | 46/46 | 52.4 | 47.4 | BMI-XEU40L |
| M40x1.5 | 22.0 - 32.0 | 18.0 | 53/53 | 59.6 | 52.4 | BMI-X8 |
| M50x1.5 | 30.0 - 38.0 | 18.0 | 60/60 | 67.8 | 54.8 | BMI-X9 |
| M63x1.5 | 34.0 - 44.0 | 18.0 | 65/65 | 72.4 | 54.9 | BMI-X10 |
| Thread Size | Cable Ø | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|
| NPT 1/2 | 5.0 - 10.0 | 15.0 | 22/24 | 27.0 | 32.2 | BNI-SX2 |
| NPT 1/2 | 6.0 - 12.0 | 15.0 | 24/24 | 27.0 | 32.4 | BNI-X2 |
| NPT 1/2 | 10.0 - 14.0 | 15.0 | 27/27 | 30.9 | 31.9 | BNI-LX2 |
| NPT 3/4 | 13.0 - 18.0 | 15.0 | 33/33 | 37.2 | 38.4 | BNI-X3 |
| NPT 1 | 18.0 - 25.0 | 18.0 | 42/42 | 47.1 | 43.3 | BNI-X4 |
