| 适用环境 | · II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex II 2GD · Ex eb IIC Gb, Ex tb IIIC Db |
| IECEx防护类别代码 | · Ex eb IIC Gb, Ex tb IIIC Db |
| IP防护等级 | · IP66, IP68（5巴 30分钟） · UH型号防护等级为 IP64 |
| 电缆密封接头材质 | · 不锈钢316L |
| 密封材料 | · 丁腈橡胶 (NBR) |
| 工作温度 | · 丁腈橡胶 (NBR): -40°C ~ +100°C |
| 螺纹类型 | · 公制 |
| 附件 | · 锁紧螺母 |
| 注意 | · 所有附件需单独订购 |
| 特性 | · 平衡外壳内外的压力差 · 防止由于压力差引起的冷凝导致的损坏 · 疏水，疏油 |

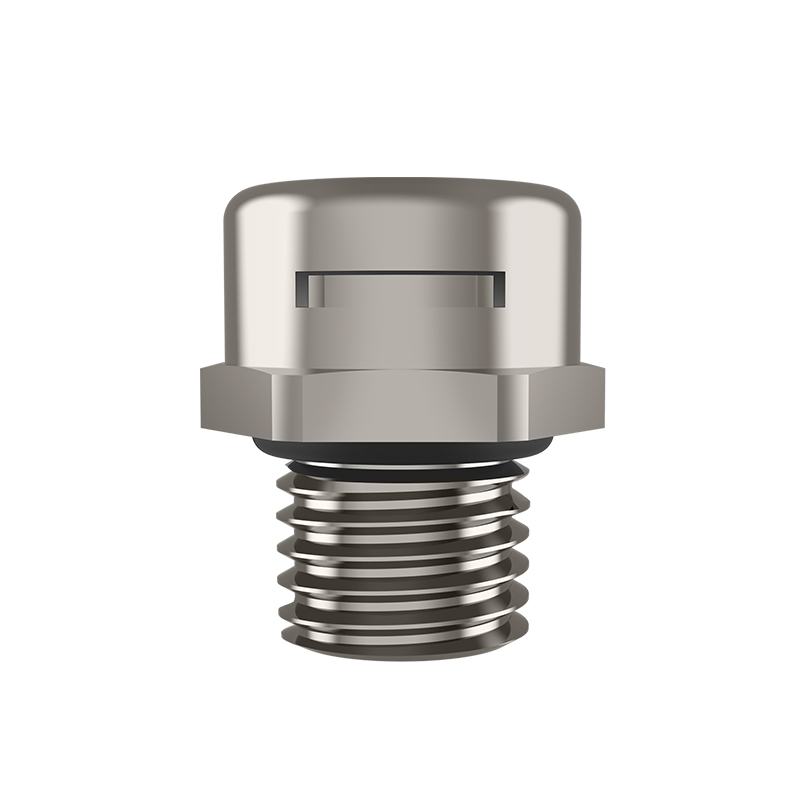

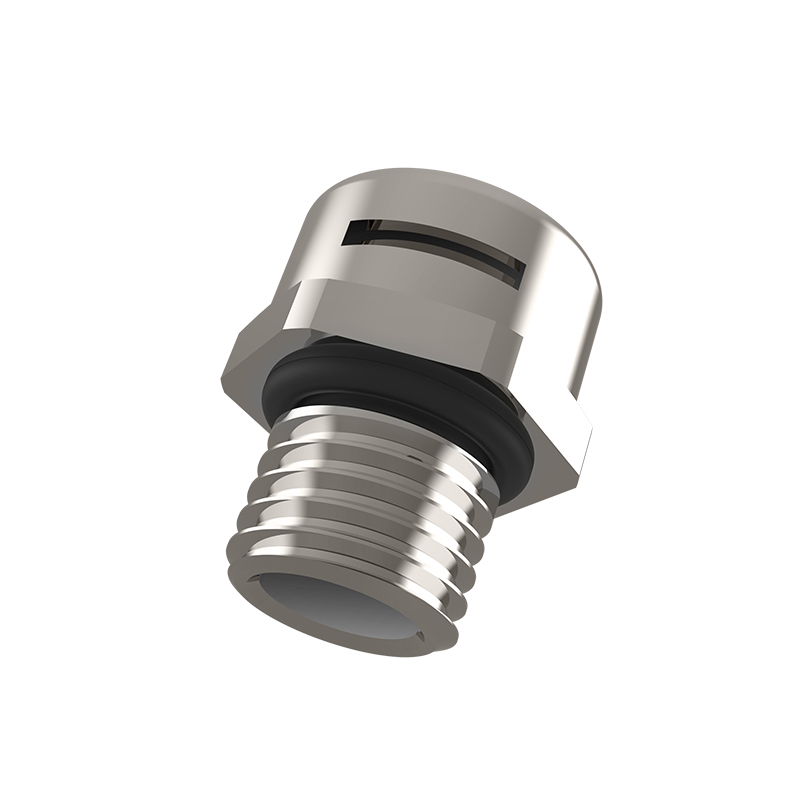

II类工业气体，III类粉尘环境适用。
符合Ex eb和Ex tb防爆标准，可与本安型回路配套使用，适用Zone 1/ 2, Zone 21/ 22危险区域。
适用环境温度-40℃~+100℃。
IP66/IP68最高防护等级。
平衡外壳内部与外部环境之间的压差。
防止因压差产生凝露等损坏情况。
材质可选黄铜、镀镍黄铜或不锈钢，公制螺纹与 NPT 螺纹规格均有供应。
可按需提供其他螺纹规格。
通过ATEX，IECEx，EAC，INMETRO等防爆认证，并取得DNV船级社认证。
For applications in explosive environments.
Balances pressure differences between inner housing and the outside environment.
Prevents damages, such as condensation due to pressure differences.
Compliant with Ex eb and Ex tb safety standards.
Can be used with intrinsically safe circuits.
Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | IMQ 13 ATEX 030X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx IMQ 14.0003X | IEC 60079-0, 1, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 21.0185 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WU | |
 |
UKCA | CML 21UKEX3475X |

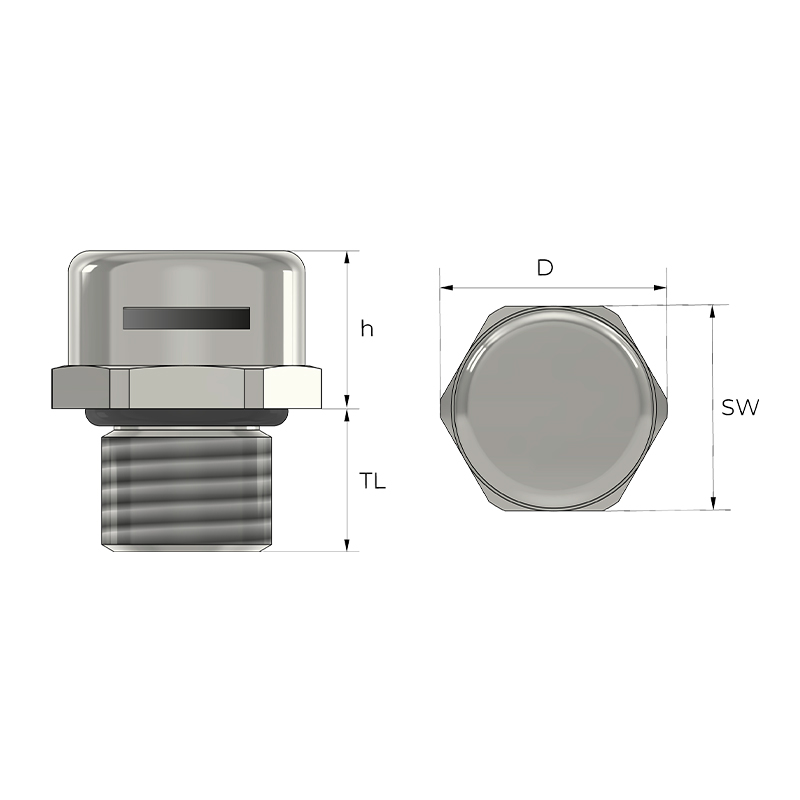

| Thread Size | Air Flow | Water Pressure | TL | SW | Outer Ø 'D' | Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|
| M12x1.5 | 16 | 0.9 | 6.0 | 17 | 18.8 | 11.0 | SBBVP-X01 (TL6) |
| M12x1.5 | 25 | 0.5 | 6.0 | 17 | 18.8 | 11.0 | MBBVP-X01 (TL6) |
| M12x1.5 | 120 | 0.2 | 6.0 | 17 | 18.8 | 11.0 | HBBVP-X01 (TL6) |
| M12x1.5 | 300 | 0.1 | 6.0 | 17 | 18.8 | 11.0 | UHBBVP-X01 (TL6) |
| M12x1.5 | 16 | 0.9 | 10.0 | 17 | 18.8 | 11.0 | SBBVP-X01L (TL10) |
| M12x1.5 | 25 | 0.5 | 10.0 | 17 | 18.8 | 11.0 | MBBVP-X01L (TL10) |
| M12x1.5 | 120 | 0.2 | 10.0 | 17 | 18.8 | 11.0 | HBBVP-X01L (TL10) |
| M12x1.5 | 300 | 0.1 | 10.0 | 17 | 18.8 | 11.0 | UHBBVP-X01L (TL10) |
| M16x1.5 | 16 | 0.9 | 6.0 | 18 | 20.0 | 12.0 | SBBVP-X02 (TL6) |
| M16x1.5 | 25 | 0.5 | 6.0 | 18 | 20.0 | 12.0 | MBBVP-X02 (TL6) |
| M16x1.5 | 120 | 0.2 | 6.0 | 18 | 20.0 | 12.0 | HBBVP-X02 (TL6) |
| M16x1.5 | 300 | 0.1 | 6.0 | 18 | 20.0 | 12.0 | UHBBVP-X02 (TL6) |
| M16x1.5 | 16 | 0.9 | 10.0 | 18 | 20.0 | 12.0 | SBBVP-X02L (TL10) |
| M16x1.5 | 25 | 0.5 | 10.0 | 18 | 20.0 | 12.0 | MBBVP-X02L (TL10) |
| M16x1.5 | 120 | 0.2 | 10.0 | 18 | 20.0 | 12.0 | HBBVP-X02L (TL10) |
| M16x1.5 | 300 | 0.1 | 10.0 | 18 | 20.0 | 12.0 | UHBBVP-X02L (TL10) |
| M20x1.5 | 16 | 0.9 | 6.0 | 22 | 24.5 | 13.0 | SBBVP-X03 (TL6) |
| M20x1.5 | 25 | 0.5 | 6.0 | 22 | 24.5 | 13.0 | MBBVP-X03 (TL6) |
| M20x1.5 | 120 | 0.2 | 6.0 | 22 | 24.5 | 13.0 | HBBVP-X03 (TL6) |
| M20x1.5 | 300 | 0.1 | 6.0 | 22 | 24.5 | 13.0 | UHBBVP-X03 (TL6) |
| M20x1.5 | 16 | 0.9 | 10.0 | 22 | 24.5 | 13.0 | SBBVP-X03L (TL10) |
| M20x1.5 | 25 | 0.5 | 10.0 | 22 | 24.5 | 13.0 | MBBVP-X03L (TL10) |
| M20x1.5 | 120 | 0.2 | 10.0 | 22 | 24.5 | 13.0 | HBBVP-X03L (TL10) |
| M20x1.5 | 300 | 0.1 | 10.0 | 22 | 24.5 | 13.0 | UHBBVP-X03L (TL10) |
| Thread Size | Air Flow Rate (l/h) | Water Pressure | TL | SW | Outer Ø 'D' | Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|
| NPT 1/4 | 16 | 0.9 | 15.1 | 17 | 18.8 | 11.0 | SBBVP-X0SP (TL15.1) |
| NPT 1/4 | 25 | 0.5 | 15.1 | 17 | 18.8 | 11.0 | MBBVP-X0SP (TL15.1) |
| NPT 1/4 | 120 | 0.2 | 15.1 | 17 | 18.8 | 11.0 | HBBVP-X0SP (TL15.1) |
| NPT 1/4 | 300 | 0.1 | 15.1 | 17 | 18.8 | 11.0 | UHBBVP-X0SP (TL15.1) |
