| 适用环境 | · II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex II 2GD · Ex eb IIC Gb, Ex tb IIIC Db IP66/68 |
| IECEx防护类别代码 | · Ex eb IIC Gb · Ex tb IIIC Db IP66/68 |
| IP防护等级 | · IP66 , IP68（5 巴 30 分钟） |
| 电缆密封接头材质 | · 尼龙PA 6 |
| 密封材料 | · 氯丁橡胶，硅胶 |
| 工作温度 | · 氯丁橡胶: -40°C to +80°C · 硅胶: -60°C to +80°C · M20只能用氯丁橡胶密封塞 · M25只能用硅胶密封塞 |
| 螺纹类型 | · 公制，NPT。其他螺纹可按要求提供。 |
| 电缆类型 | · 非铠装 |
| 附件 | · 锁紧螺母，垫圈，防尘帽 |
| 注意 ⚠️ | · 所有附件需单独订购 |
II类工业气体，III类粉尘环境适用。

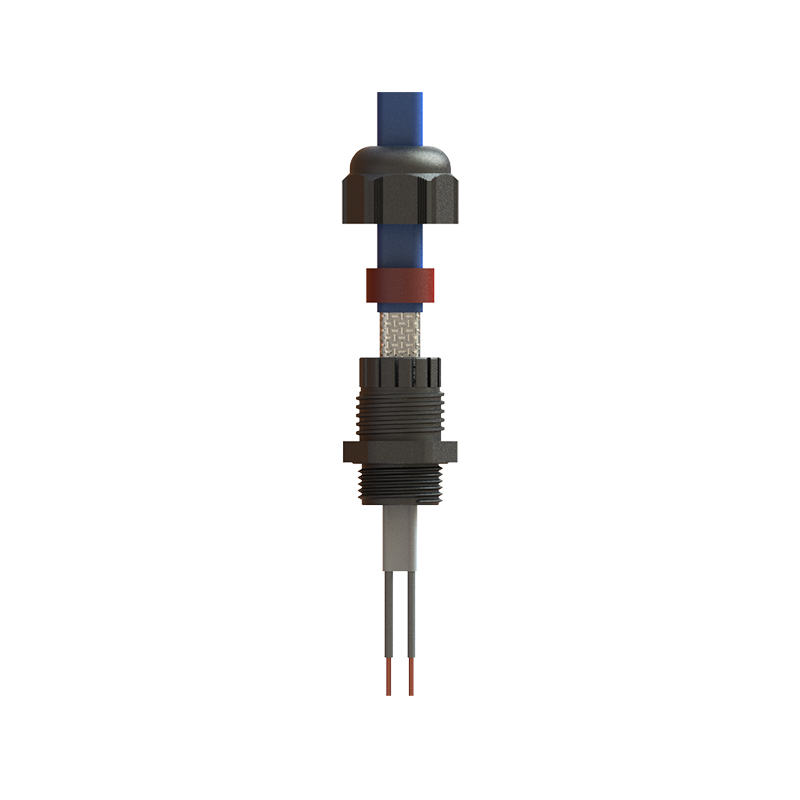

专为伴热电缆和扁平电缆的特殊设计。
符合Ex eb和Ex tb防爆标准，适用Zone 1/ 2, Zone 21/ 22危险区域。
适用环境温度-60℃~+80℃。
IP66/IP68最高防护等级。
高品质应力消除与密封设计，适用于常规危险区域应用，性能可靠。
通过ATEX，IECEx，EAC，UKCA等防爆认证,并取得DNV船级社认证。
For applications in explosive environments.
Special design for heat trace and flat cables.
Compliant with Ex eb and Ex tb safety standards.
Can be used for 4J low impact applications.
Can be used with intrisically safe circuits.
Easy assembly.
Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | IMQ 13 ATEX 011X | EN 60079-0, 7, 31 |
 |
IECEx | IECEx IMQ 13.0004X | IEC 60079-0, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-7, 31 |
 |
INMETRO | DNV 18.0150 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WV | |
 |
UKCA | CML 21UKEX3473X |

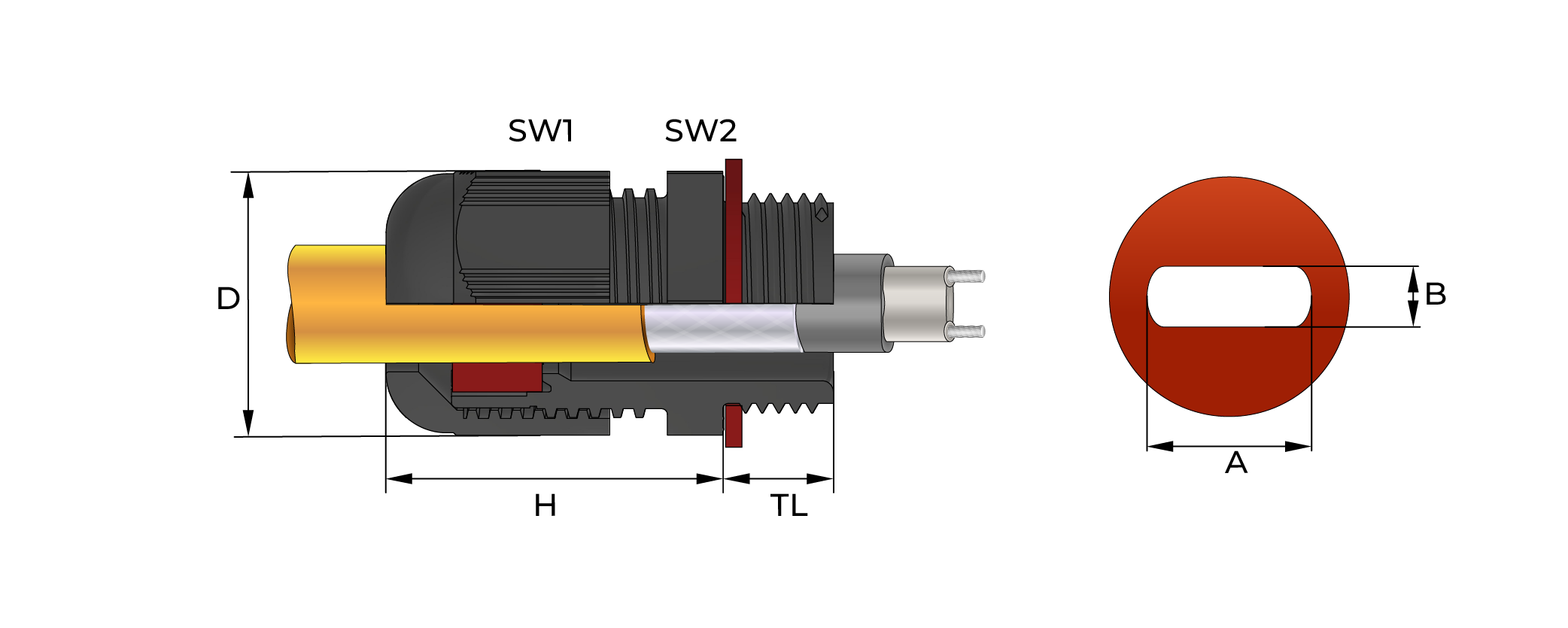

| Thread Size | Flat Hole B | Flat Hole A | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|
| M20x1.5 | 4.0 | 10.0 | 10.0 | 24/24 | 27.0 | 32.4 | BM-X2 (10.0x4.0) |
| M20x1.5 | 4.0 | 10.0 | 15.0 | 24/24 | 27.0 | 32.4 | BM-X2L (10.0x4.0) |
| M20x1.5 | 5.0 | 12.8 | 10.0 | 27/27 | 30.9 | 31.9 | BM-X3 (12.8x5.0) |
| M20x1.5 | 5.0 | 12.8 | 15.0 | 27/27 | 30.9 | 31.9 | BM-X4 (12.8x5.0) |
| M20x1.5 | 6.0 | 10.8 | 10.0 | 24/24 | 27.0 | 32.4 | BM-X2 (10.8x6.0) |
| M20x1.5 | 6.0 | 10.8 | 10.0 | 27/27 | 30.9 | 31.9 | BM-X3 (10.8x6.0) |
| M20x1.5 | 6.0 | 10.8 | 15.0 | 24/24 | 27.0 | 32.4 | BM-X2L (10.8x6.0) |
| M20x1.5 | 6.0 | 10.8 | 15.0 | 27/27 | 30.9 | 31.9 | BM-X4 (10.8x6.0) |
| M20x1.5 | 6.5 | 11.0 | 15.0 | 24/24 | 27.0 | 32.4 | BM-X2L (11.0x6.5) |
| M20x1.5 | 6.5 | 11.0 | 10.0 | 24/24 | 27.0 | 32.4 | BM-X2 (11.0x6.5) |
| M20x1.5 | 6.5 | 12.4 | 10.0 | 27/27 | 30.9 | 31.9 | BM-X3 (12.4x6.5) |
| M20x1.5 | 6.5 | 12.4 | 15.0 | 27/27 | 30.9 | 31.9 | BM-X4 (12.4x6.5) |
| M25x1.5 | 4.0 | 10.0 | 10.0 | 24/27 | 30.9 | 32.4 | BM-XSX5 (10.0x4.0) |
| M25x1.5 | 4.0 | 10.0 | 15.0 | 24/27 | 30.9 | 32.4 | BM-XSX6 (10.0x4.0) |
| M25x1.5 | 5.0 | 12.8 | 10.0 | 27/27 | 30.9 | 31.9 | BM-SX5 (12.8x5.0) |
| M25x1.5 | 5.0 | 15.0 | 10.0 | 33/33 | 37.2 | 38.4 | BM-X5 (15.0x5.0) |
| M25x1.5 | 5.0 | 15.0 | 15.0 | 33/33 | 37.2 | 38.4 | BM-X6 (15.0x5.0) |
| M25x1.5 | 6.0 | 10.8 | 10.0 | 24/27 | 30.9 | 32.4 | BM-XSX5 (10.8x6.0) |
| M25x1.5 | 6.0 | 10.8 | 10.0 | 27/27 | 30.9 | 31.9 | BM-SX5 (10.8x6.0) |
| M25x1.5 | 6.0 | 10.8 | 15.0 | 24/27 | 30.9 | 32.4 | BM-XSX6 (10.8x6.0) |
| M25x1.5 | 6.0 | 10.8 | 15.0 | 27/27 | 30.9 | 31.9 | BM-SX6 (10.8x6.0) |
| M25x1.5 | 6.0 | 12.0 | 15.0 | 33/33 | 37.2 | 38.4 | BM-X6 (12.0x6.0) |
| M25x1.5 | 6.0 | 12.0 | 10.0 | 33/33 | 37.2 | 38.4 | BM-X5 (12.0x6.0) |
| M25x1.5 | 6.5 | 11.0 | 10.0 | 24/27 | 30.9 | 32.4 | BM-XSX5 (11.0x6.5) |
| M25x1.5 | 6.5 | 11.0 | 15.0 | 24/27 | 30.9 | 32.4 | BM-XSX6 (11.0x6.5) |
| M25x1.5 | 6.5 | 12.4 | 10.0 | 27/27 | 30.9 | 31.9 | BM-SX5 (12.4x6.5) |
| M25x1.5 | 6.5 | 12.4 | 15.0 | 27/27 | 30.9 | 31.9 | BM-SX6 (12.4x6.5) |
| M32x1.5 | 5.0 | 15.0 | 10.0 | 33/36 | 41.0 | 38.4 | BM-SX7 (15.0x5.0) |
| M32x1.5 | 6.0 | 12.0 | 10.0 | 33/36 | 41.0 | 38.4 | BM-SX7 (12.0x6.0) |
