| 适用环境 | · II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex II 2GD · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db |
| IECEx防护类别代码 | · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db |
| UL防护类别代码 | · Class I, Zone 1, AEx e IIC Gb; Zone 21, AEx tb IIIC Db · Class I, Zone 2, AEx e IIC Gc; Zone 22, AEx tc IIIC Dc |
| IP防护等级 | · IP66，IP68（5 巴 30 分钟） |
| Type防护等级 | · TYPE 4X |
| 电缆密封接头材质 | · 黄铜镀镍，不锈钢316L |
| 密封材料 | · 氯丁橡胶，硅胶 |
| 工作温度 | · 氯丁橡胶: -40°C to +80°C · 硅胶: -60°C to +140°C · Ex eb/tb应用中硅胶密封可用于-60°C to +140°C环境 |
| 螺纹类型 | · 公制，NPT。其他螺纹可按要求提供。 |
| 电缆类型 | · 非铠装型 |
| 附件 | · 锁紧螺母，垫圈，锯齿垫圈，护套，接地片，圆顶堵头 |
| 注意 ⚠ | · 所有附件需单独订购 |

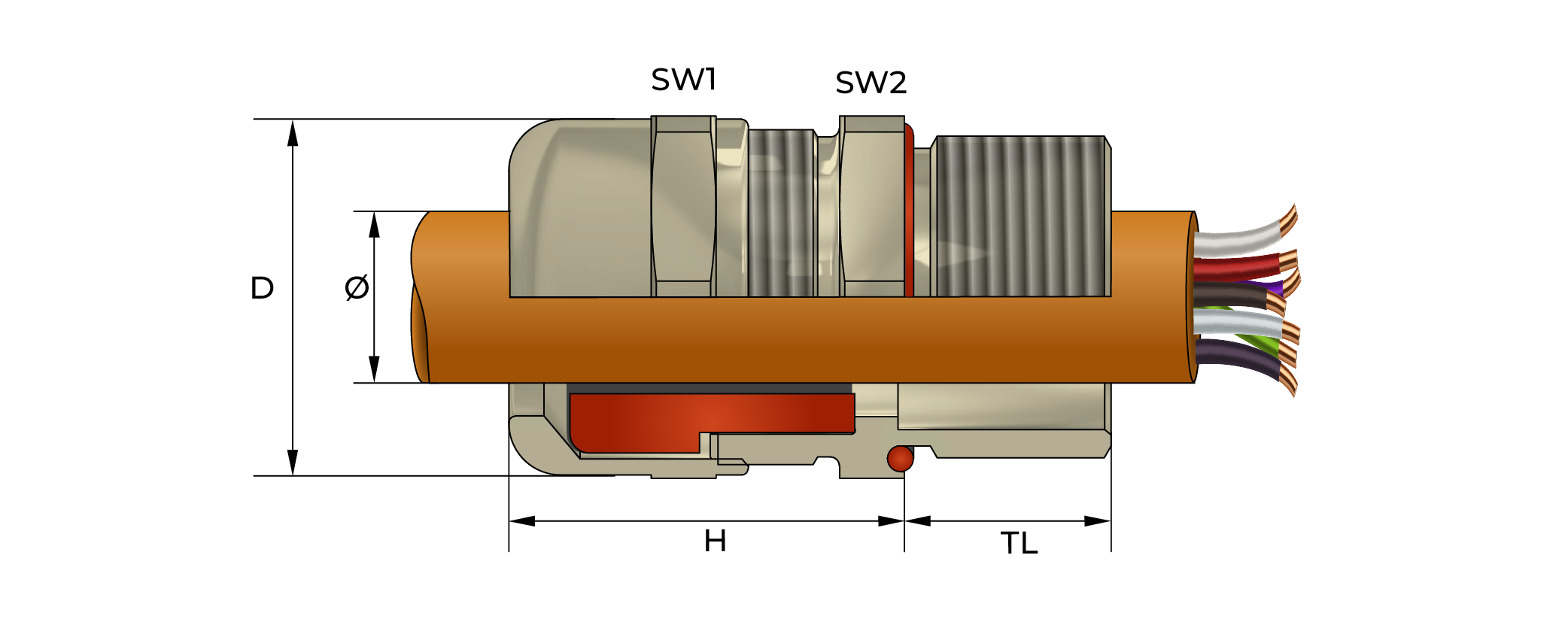

| Thread Size | Inner Cable Ø | Seal Type | Ex-e TL | Ex-d/e TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| M12x1.5 | 3.0 - 8.0 | Double | 9.0 | 16.0 | 20/20 | 22.0 | 29.0 | EBU0M |
| M12x1.5 | 4.0 - 8.0 | Triple | 9.0 | 16.0 | 22/22 | 24.5 | 33.0 | EBU0SM |
| M16x1.5 | 3.0 - 9.0 | Double | 9.0 | 16.0 | 20/20 | 22.0 | 29.0 | EBU01SM |
| M16x1.5 | 4.0 - 12.0 | Triple | 9.0 | 16.0 | 22/22 | 24.5 | 33.0 | EBU01M |
| M20x1.5 | 3.0 - 9.0 | Double | 9.0 | 16.0 | 20/22 | 24.5 | 29.0 | EBU1SM |
| M20x1.5 | 4.0 - 12.0 | Triple | 9.0 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M |
| M20x1.5 | 10.0 - 16.0 | Triple | 9.0 | 16.0 | 28/28 | 31.0 | 32.0 | EBU12M |
| M25x1.5 | 4.0 - 12.0 | Triple | 9.0 | 16.0 | 22/28 | 31.0 | 29.0 | EBU2SM |
| M25x1.5 | 10.0 - 18.0 | Triple | 9.0 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M |
| M25x1.5 | 14.0 - 20.0 | Triple | 9.0 | 16.0 | 35/35 | 39.0 | 36.0 | EBU23M |
| M32x1.5 | 10.0 - 18.0 | Triple | 9.0 | 16.0 | 28/35 | 39.0 | 32.5 | EBU3SM |
| M32x1.5 | 14.0 - 24.0 | Triple | 9.0 | 16.0 | 35/35 | 39.0 | 35.0 | EBU3M |
| M32x1.5 | 22.0 - 28.0 | Triple | 9.0 | 16.0 | 45/45 | 49.5 | 42.5 | EBU34M |
| M40x1.5 | 14.0 - 24.0 | Triple | 9.0 | 18.0 | 35/45 | 49.5 | 35.0 | EBU4SM |
| M40x1.5 | 22.0 - 32.0 | Triple | 9.0 | 18.0 | 45/45 | 49.5 | 42.5 | EBU4M |
| M40x1.5 | 26.0 - 34.0 | Triple | 9.0 | 18.0 | 50/50 | 56.0 | 45.5 | EBU45M |
| M50x1.5 | 22.0 - 32.0 | Triple | 9.0 | 18.0 | 45/55 | 61.0 | 42.5 | EBU5SM |
| M50x1.5 | 26.0 - 35.0 | Triple | 9.0 | 18.0 | 50/55 | 61.0 | 45.5 | EBU5M |
| M50x1.5 | 35.0 - 44.0 | Triple | 9.0 | 18.0 | 64/64 | 70.0 | 45.0 | EBU56M |
| M63x1.5 | 26.0 - 35.0 | Triple | 9.0 | 18.0 | 50/68 | 75.0 | 45.5 | EBU6SM |
| M63x1.5 | 35.0 - 45.0 | Triple | 9.0 | 18.0 | 64/68 | 75.0 | 45.0 | EBU6M |
| M63x1.5 | 46.0 - 56.0 | Triple | 9.0 | 18.0 | 80/75 | 89.0 | 54.0 | EBU67M |
| M75x1.5 | 35.0 - 45.0 | Triple | 9.0 | 20.0 | 64/80 | 89.0 | 45.0 | EBU7SM |
| M75x1.5 | 46.0 - 62.0 | Triple | 9.0 | 20.0 | 80/80 | 89.0 | 54.0 | EBU7M |
| M75x1.5 | 60.0 - 69.0 | Triple | 9.0 | 20.0 | 95/95 | 105.0 | 57.0 | EBU78M |
| M90x1.5 | 46.0 - 62.0 | Triple | 9.0 | 20.0 | 80/95 | 105.0 | 53.5 | EBU8SM |
| M90x1.5 | 60.0 - 75.0 | Triple | 9.0 | 20.0 | 95/95 | 105.0 | 57.0 | EBU8M |
| M90x1.5 | 75.0 - 82.0 | Triple | 9.0 | 20.0 | 105/105 | 117.0 | 56.0 | EBU810M |
| M100x1.5 | 60.0 - 75.0 | Triple | 9.0 | 20.0 | 95/105 | 117.0 | 57.0 | EBU10SM |
| M100x1.5 | 75.0 - 85.0 | Triple | 9.0 | 20.0 | 105/105 | 117.0 | 56.0 | EBU10M |
| M110x1.5 | 85.0 - 95.0 | Triple | 9.0 | 20.0 | 115/115 | 128.0 | 58.0 | EBU11M |
| M115x2.0 | 75.0 - 85.0 | Triple | 9.0 | 24.0 | 105/130 | 144.0 | 56.0 | EBU115XSM |
| M115x2.0 | 85.0 - 95.0 | Triple | 9.0 | 24.0 | 115/130 | 144.0 | 58.0 | EBU115SM |
| M115x2.0 | 95.0 - 105.0 | Triple | 9.0 | 24.0 | 130/130 | 144.0 | 64.5 | EBU115M |
| M130x2.0 | 105.0 - 115.0 | Triple | 9.0 | 24.0 | 140/140 | 154.0 | 67.5 | EBU13M |

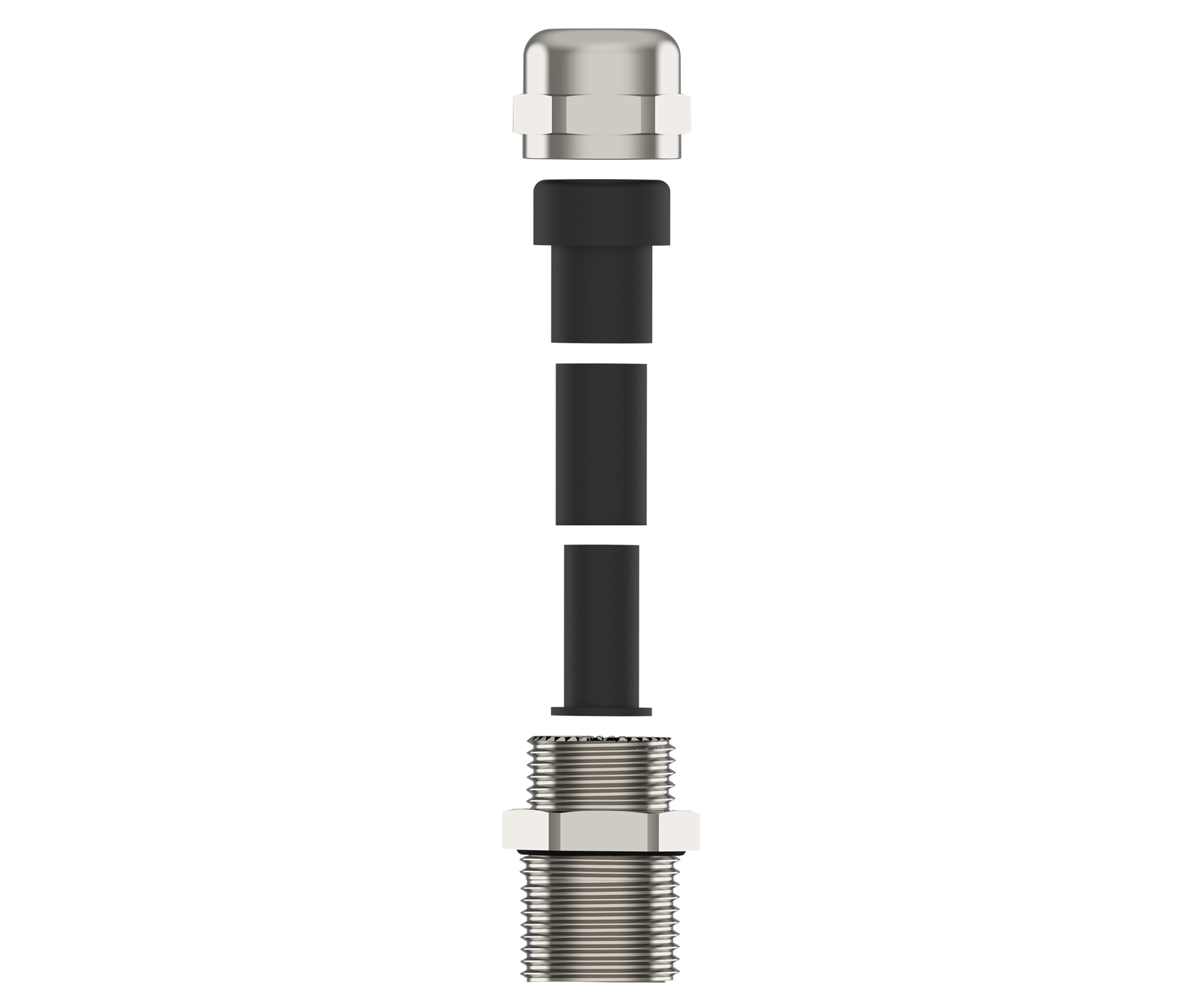

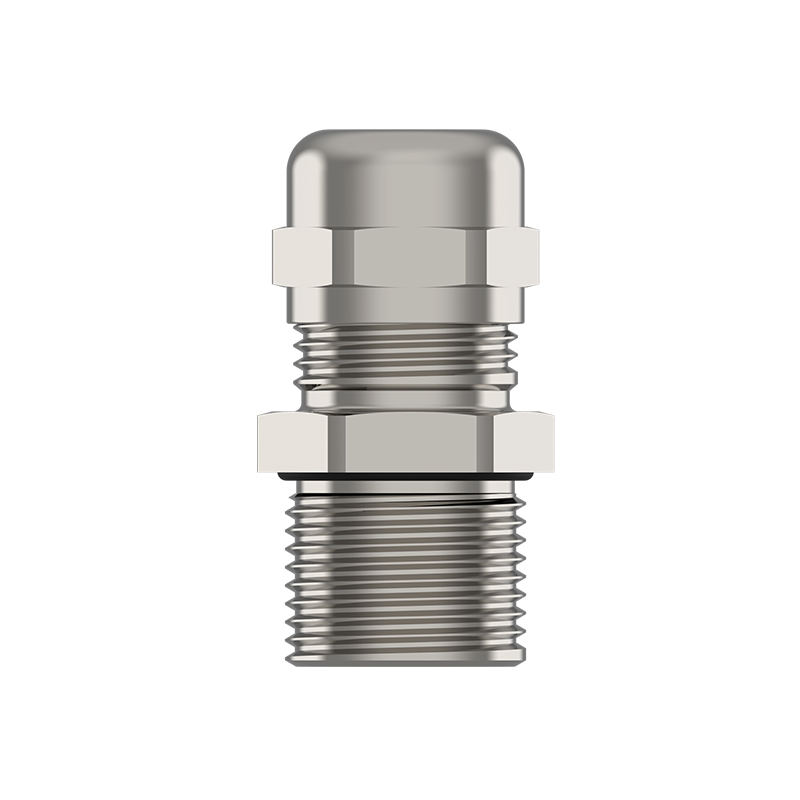

II类危险区域电缆密封接头，适用于非铠装电缆和编织电缆
产品通过全球防爆认证（ATEX, IECEx, UL, CSA, EAC, CCC, INMETRO等）及DNV船级社认证。
通过Exd、Exe 和 Ext，适用Zone 1, 21, Zone 21, 22危险区域安装
适用北美Class I Zone 1, Class I Zone 21危险区域

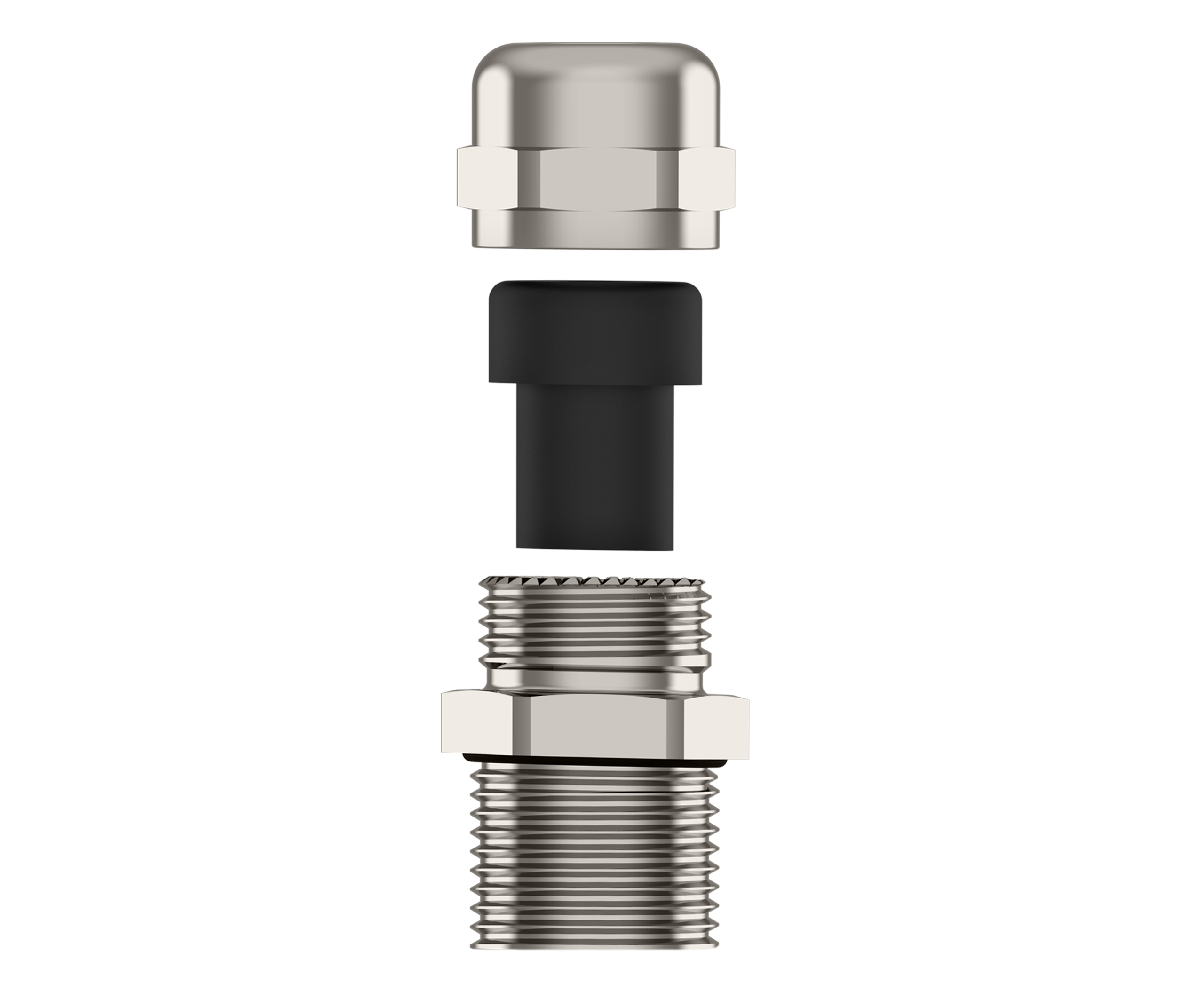

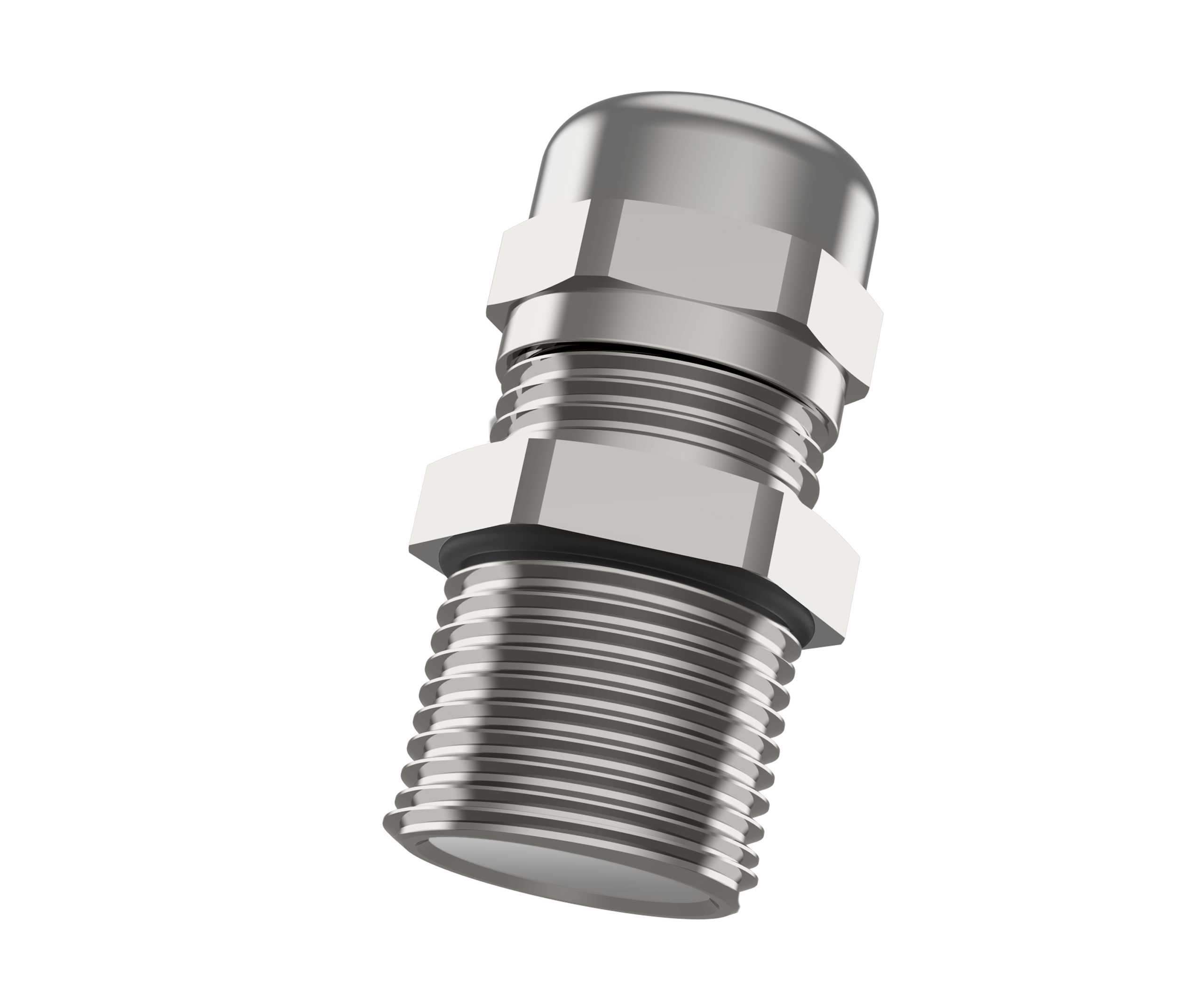

三层“套娃”式密封圈独特设计，用最小扭矩实现最佳密封效果，减少对密封圈和电缆的损坏
适用环境温度-60°C ~ +80°C
IP66/IP68最高防护等级
可选用镀镍黄铜、不锈钢316L，并提供公制螺纹和 NPT 螺纹。
| 认证 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | IMQ 13 ATEX 018X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx IMQ 13.0006X | IEC 60079-0, 1, 7, 31 |
|
|
UL（安规） | E199260 | UL514B, UL50E, UL2225, CSA22.2 No 18.3-12, No 94.2-15, No. 14-18 |
|
|
UL（防爆） | E474828 | UL 60079-0, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 21.0183 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV海事 | TAE00003WU | |
 |
UKCA | CML 21UKEX1474X | |
 |
CCC | No 2021312313000410 |
| Thread Size | Cable Ø | Seal Type | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|
| NPT 1/4 | 3.0 - 8.0 | Double | 16.0 | 20/20 | 22.0 | 29.0 | EBU0N |
| NPT 1/4 | 4.0 - 8.0 | Triple | 16.0 | 22/22 | 24.5 | 33.0 | EBU0SN |
| NPT 3/8 | 3.0 - 9.0 | Double | 16.0 | 20/20 | 22.0 | 29.0 | EBU01SN |
| NPT 3/8 | 4.0 - 12.0 | Triple | 16.0 | 22/22 | 24.5 | 33.0 | EBU01N |
| NPT 1/2 | 3.0 - 9.0 | Double | 16.0 | 20/22 | 24.5 | 29.0 | EBU1SN |
| NPT 1/2 | 4.0 - 12.0 | Triple | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N |
| NPT 1/2 | 10.0 - 16.0 | Triple | 16.0 | 28/28 | 31.0 | 32.0 | EBU12N |
| NPT 3/4 | 4.0 - 12.0 | Triple | 16.0 | 22/28 | 31.0 | 29.0 | EBU2SN |
| NPT 3/4 | 10.0 - 18.0 | Triple | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N |
| NPT 3/4 | 14.0 - 20.0 | Triple | 16.0 | 35/35 | 39.0 | 35.0 | EBU23N |
| NPT 1 | 10.0 - 18.0 | Triple | 20.0 | 28/35 | 39.0 | 33.0 | EBU3SN |
| NPT 1 | 14.0 - 24.0 | Triple | 20.0 | 35/35 | 39.0 | 35.0 | EBU3N |
| NPT 1 | 22.0 - 26.0 | Triple | 20.0 | 45/45 | 49.5 | 42.0 | EBU34N |
| NPT 1 1/4 | 14.0 - 24.0 | Triple | 20.0 | 35/45 | 49.5 | 35.0 | EBU4SN |
| NPT 1 1/4 | 22.0 - 32.0 | Triple | 20.0 | 45/45 | 49.5 | 42.5 | EBU4N |
| NPT 1 1/4 | 26.0 - 34.0 | Triple | 20.0 | 50/50 | 56.0 | 45.5 | EBU45N |
| NPT 1 1/2 | 22.0 - 32.0 | Triple | 20.0 | 45/55 | 61.0 | 42.5 | EBU5SN |
| NPT 1 1/2 | 26.0 - 35.0 | Triple | 20.0 | 50/55 | 61.0 | 45.5 | EBU5N |
| NPT 1 1/2 | 35.0 - 41.0 | Triple | 20.0 | 64/64 | 70.0 | 44.0 | EBU56N |
| NPT 2 | 26.0 - 35.0 | Triple | 20.0 | 50/68 | 75.0 | 45.5 | EBU6SN |
| NPT 2 | 35.0 - 45.0 | Triple | 20.0 | 64/68 | 75.0 | 45.0 | EBU6N |
| NPT 2 | 46.0 - 52.0 | Triple | 20.0 | 80/75 | 89.0 | 54.0 | EBU67N |
| NPT 2 1/2 | 35.0 - 45.0 | Triple | 21.0 | 64/80 | 89.0 | 45.0 | EBU7SN |
| NPT 2 1/2 | 46.0 - 62.0 | Triple | 21.0 | 80/80 | 89.0 | 53.5 | EBU7N |
| NPT 2 1/2 | 60.0 - 64.0 | Triple | 21.0 | 95/95 | 105.0 | 57.0 | EBU78N |
| NPT 3 | 46.0 - 62.0 | Triple | 21.0 | 80/95 | 105.0 | 53.5 | EBU8SN |
| NPT 3 | 60.0 - 75.0 | Triple | 21.0 | 95/95 | 105.0 | 57.0 | EBU8N |
| NPT 3 | 75.0 - 79.5 | Triple | 21.0 | 105/105 | 117.0 | 56.0 | EBU810N |
| NPT 4 | 60.0 - 75.0 | Triple | 21.0 | 95/115 | 128.0 | 57.0 | EBU10SN |
| NPT 4 | 75.0 - 85.0 | Triple | 21.0 | 105/115 | 128.0 | 56.0 | EBU10N |
| NPT 4 | 85.0 - 95.0 | Triple | 21.0 | 115/115 | 128.0 | 58.0 | EBU11N |
| NPT 4 | 95.0 - 101.0 | Triple | 21.0 | 130/130 | 144.0 | 64.5 | EBU115N |
| NPT 5 | 95.0 - 105.0 | Triple | 27.0 | 130/145 | 162.0 | 64.5 | EBU13N |
| NPT 5 | 105.0 - 115.0 | Triple | 27.0 | 140/145 | 162.0 | 67.5 | EBU130N |
