| 适用环境 | II类--工厂气体，III类--粉尘Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | Ex II 2GDEx eb IIC Gb, Ex tb IIIC Db |
| IECEx防护类别代码 | Ex eb IIC Gb, Ex tb IIIC Db |
| IP防护等级 | IP66，IP68（5 巴 30 分钟） |
| Type防护等级 | TYPE 4X |
| 电缆密封接头材质 | 黄铜镀镍，不锈钢316L |
| 密封材料 | 氯丁橡胶，硅胶 |
| 工作温度 | 氯丁橡胶: -40°C to +80°C硅胶: -60°C to +140°CEx eb/tb应用中硅胶密封可用于-60°C to +140°C环境 |
| 螺纹类型 | 公制，NPT。其他螺纹可按要求提供。 |
| 电缆类型 | 非铠装扁平电缆 |
| 附件 | 锁紧螺母，垫圈，锯齿垫圈，护套，接地片 |
| 注意 | 所有附件需单独订购 |

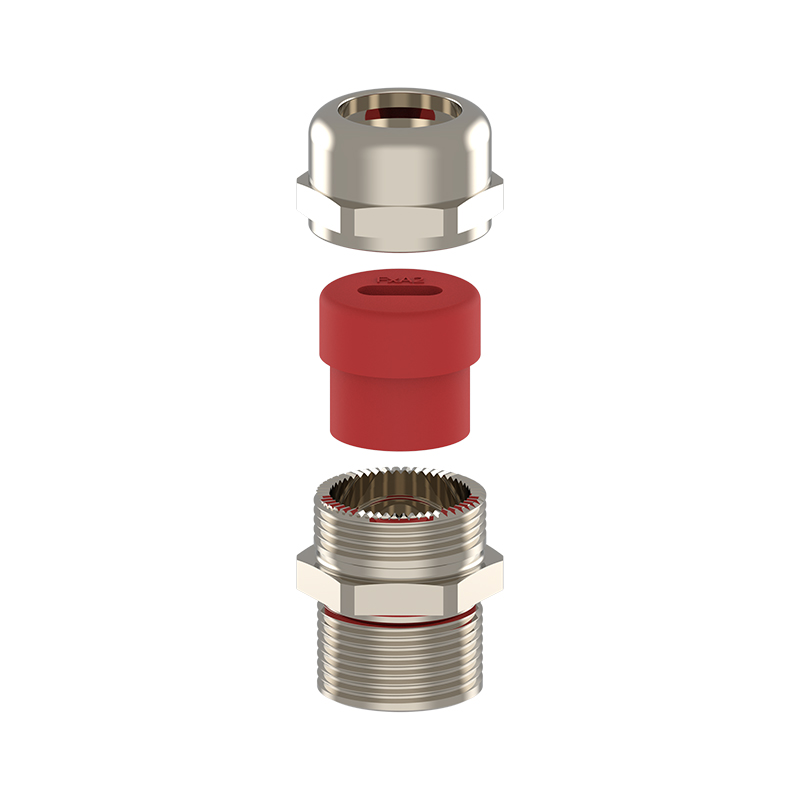

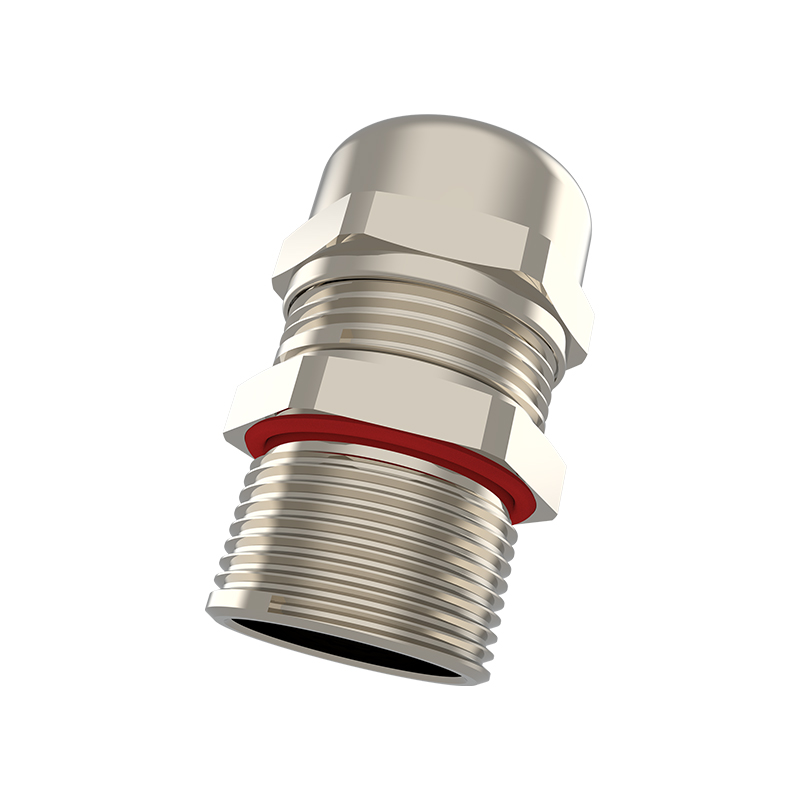

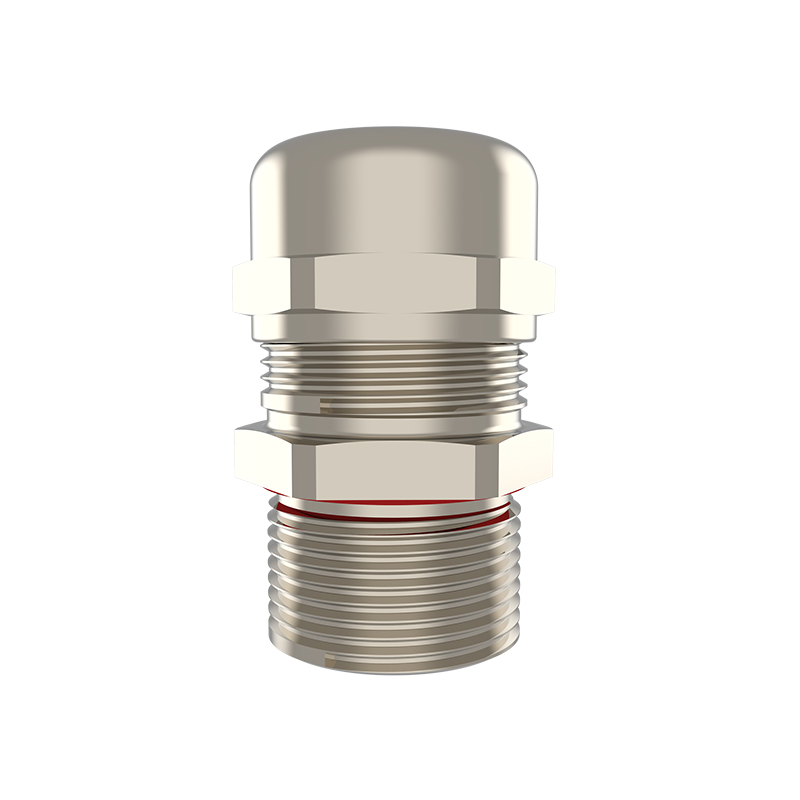

专为电伴热和扁平电缆设计的防爆解决方案，适用于爆炸性危险环境
产品通过全球防爆认证（ATEX, IECEx, EAC, CCC, INMETRO等）及DNV船级社认证。
通过 Ex e（增安型）和 Ex t（外壳保护型）认证，适用于 1区/21区及 2区/22区危险区域安装
适用环境温度-60°C ~ +80°C
IP66/IP68最高防护等级
可选用镀镍黄铜、不锈钢316L，并提供公制螺纹和 NPT 螺纹。
Special design for heat trace and flat cables.
For applications in explosive environments.
Exe and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.
Available in brass, nickel plated brass, stainless steel or aluminium with both Metric and NPT threadforms.
Other threadforms available on request.
The standard marking consists ATEX & IECEx only. Marking acc. to other standards on request.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | IMQ 13 ATEX 018X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx IMQ 13.0006X | IEC 60079-0, 1, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 21.0183 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WU | |
 |
UKCA | CML 21UKEX1474X | |
 |
CCC | No 2021312313000410 |

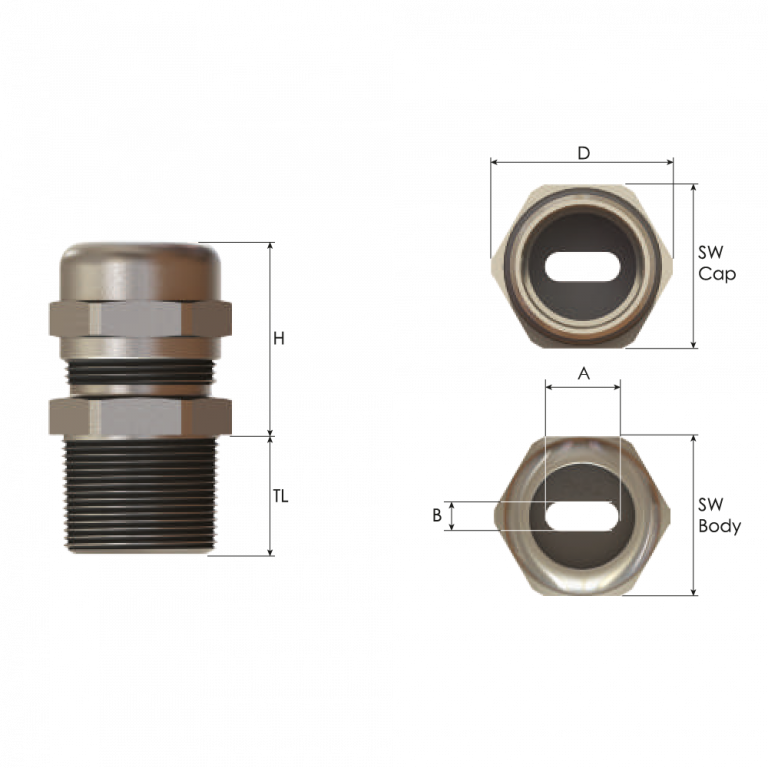

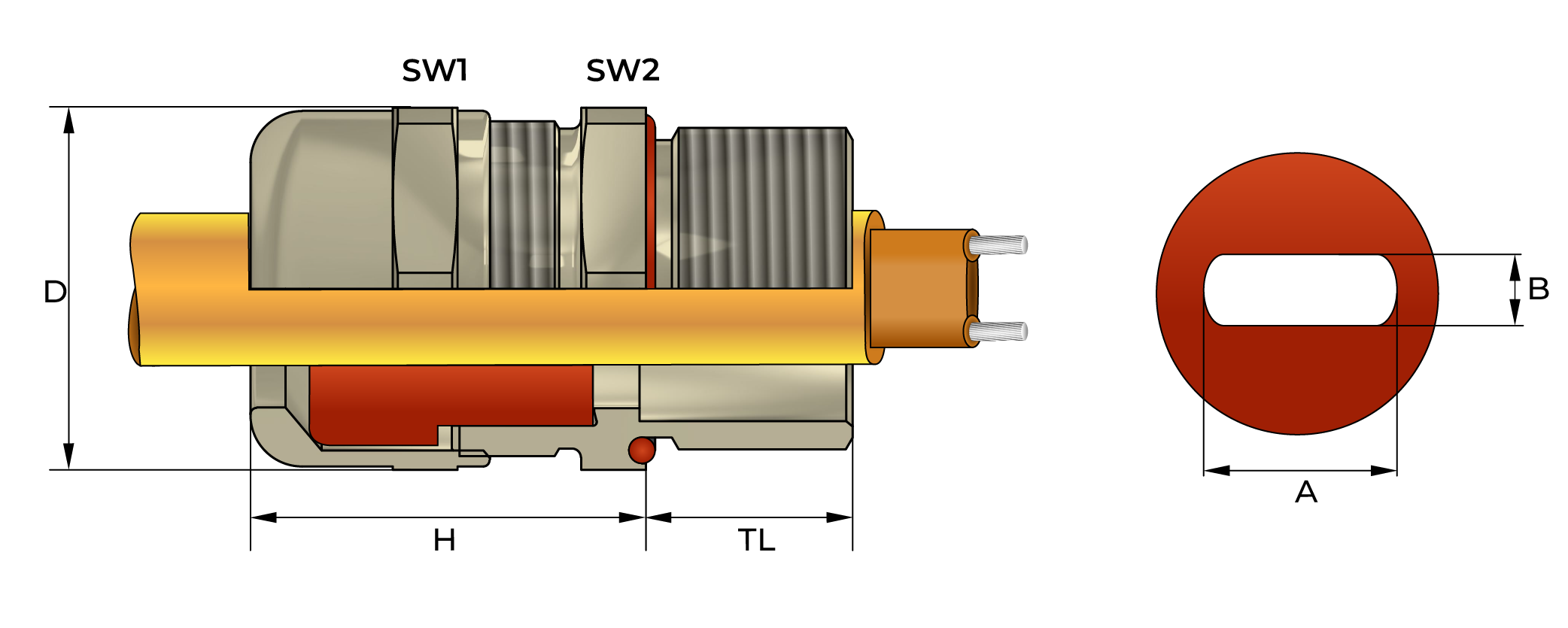

| Thread Size | Flat Hole A | Flat Hole B | Armour Wire Ø | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| M20X1.5 | 12.2 | 5.0 | 0.8 - 1.25 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M(FxA1) |
| M20X1.5 | 11.7 | 5.5 | 0.8 - 1.25 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M(FxC1) |
| M20X1.5 | 8.5 | 6.0 | 0.8 - 1.25 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M(FxB1) |
| M20X1.5 | 12.2 | 6.0 | 0.8 - 1.25 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M(FxD1) |
| M20X1.5 | 10.8 | 6.3 | 0.8 - 1.25 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M(FxE1) |
| M20X1.5 | 12.7 | 6.7 | 0.8 - 1.25 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1M(FxG1) |
| M25X1.5 | 12.8 | 5.0 | 0.8 - 1.25 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxA2) |
| M25X1.5 | 10.7 | 5.5 | 0.8 - 1.25 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxH2) |
| M25X1.5 | 11.7 | 5.5 | 1.25 - 1.6 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxC2) |
| M25X1.5 | 8.5 | 6.0 | 0.8 - 1.25 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxB2) |
| M25X1.5 | 14.0 | 6.0 | 1.25 - 1.6 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxD2) |
| M25X1.5 | 13.3 | 7.3 | 1.6 - 2.0 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxF2) |
| M25X1.5 | 15.3 | 6.8 | 1.25 - 1.6 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxG2) |
| M25X1.5 | 12.3 | 9.1 | 1.6 - 2.0 | 16.0 | 28/28 | 31.0 | 32.5 | EBU2M(FxE2) |
| Thread Size | Flat Hole A | Flat Hole B | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|
| NPT 1/2 | 12.2 | 5.0 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N(FxA1) |
| NPT 1/2 | 11.7 | 5.5 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N(FxC1) |
| NPT 1/2 | 8.5 | 6.0 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N(FxB1) |
| NPT 1/2 | 12.2 | 6.0 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N(FxD1) |
| NPT 1/2 | 10.8 | 6.3 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N(FxE1) |
| NPT 1/2 | 12.7 | 6.7 | 16.0 | 22/22 | 24.5 | 29.0 | EBU1N(FxG1) |
| NPT 3/4 | 12.8 | 5.0 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxA2) |
| NPT 3/4 | 10.7 | 5.5 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxH2) |
| NPT 3/4 | 11.7 | 5.5 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxC2) |
| NPT 3/4 | 8.5 | 6.0 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxB2) |
| NPT 3/4 | 14.0 | 6.0 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxD2) |
| NPT 3/4 | 15.3 | 6.8 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxG2) |
| NPT 3/4 | 13.3 | 7.3 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxF2) |
| NPT 3/4 | 12.3 | 9.1 | 16.0 | 28/28 | 31.0 | 32.0 | EBU2N(FxE2) |
