| 适用环境 | · II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex II 2GD · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db |
| IECEx防护类别代码 | · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db |
| UL防护类别代码 | · Class I, Zone 1, AEx e IIC Gb; Zone 21, AEx tb IIIC Db · Class I, Zone 2, AEx e IIC Gc; Zone 22, AEx tc IIIC Dc |
| IP防护等级 | · IP66，IP68（5 巴 30 分钟） |
| Type防护等级 | · TYPE 4X |
| 电缆密封接头材质 | · 黄铜镀镍，不锈钢316L |
| 密封材料 | · 氟丁橡胶，硅胶 |
| 工作温度 | · 氟丁橡胶: -40°C to +80°C · 硅胶: -60°C to +80°C · Ex eb/tb应用场景下硅胶密封可达 -60°C to +140°C |
| 螺纹类型 | · 公制，NPT。其他螺纹可按要求提供。 |
| 电缆类型 | · 所有类型非铠装和编织电缆 |
| 附件 | · 锁紧螺母，垫圈，锯齿垫圈，护套，接地片，圆顶堵头 |
| 注意 ⚠️ | · 所有附件需单独订购 |

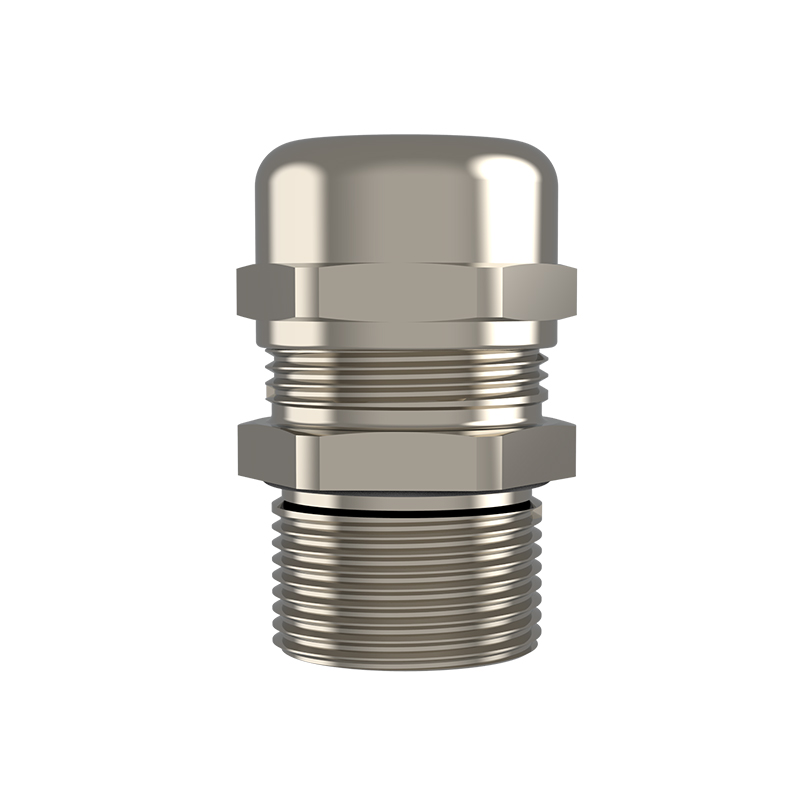

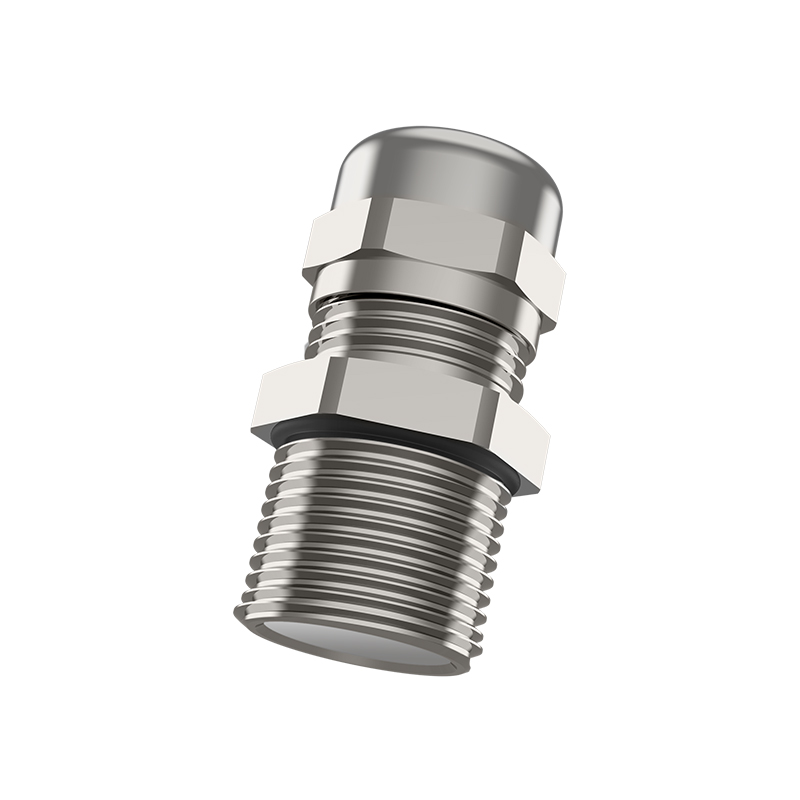

II类危险区域防爆电缆引入装置（防爆格兰头），配备EMC接地弹簧，适用于编织或屏蔽电缆
产品通过全球防爆认证（ATEX, IECEx, UL, CSA, EAC, CCC, INMETRO等）及DNV船级社认证。
通过Exd、Exe 和 Ext，适用Zone 1, 21, Zone 21, 22危险区域安装
适用北美Class I Zone 1, Class I Zone 21危险区域

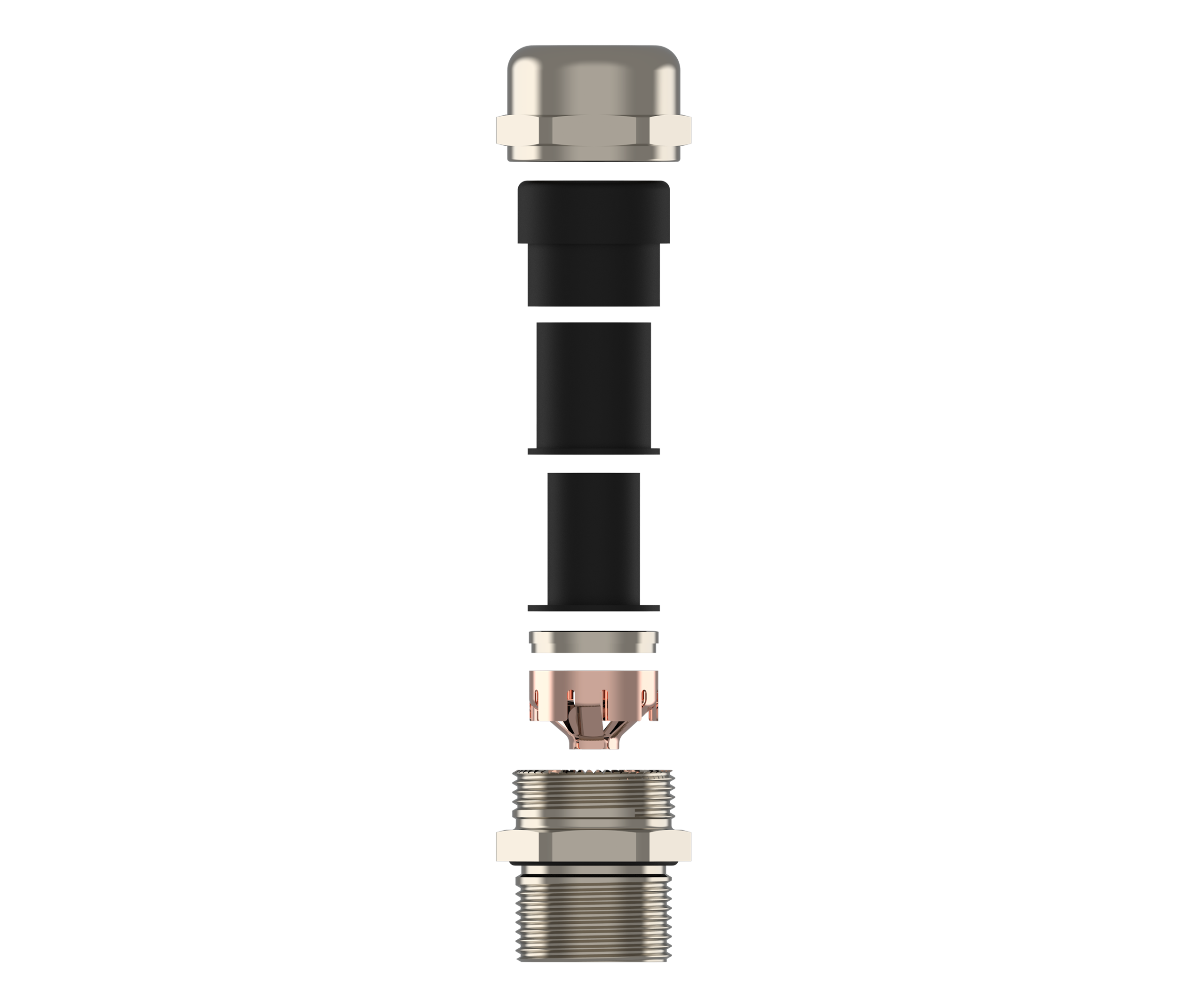

三层“套娃”式密封圈独特设计，用最小扭矩实现最佳密封效果，减少对密封圈和电缆的损坏
该电缆引入装置在电缆外护套上提供隔爆密封，同时实现IP防护和电缆固定/防拉脱功能。
适用环境温度-60°C ~ +80°C
IP66/IP68最高防护等级
可选用镀镍黄铜、不锈钢316L，并提供公制螺纹和 NPT 螺纹。
Group II stuffing type hazardous area cable gland complete with EMC grounding spring, suitable for braided or shielded cables where the braid and outer sheath pass into the enclosure (and for Exd where the requirements of 60079-14 are met.)
The gland provides both a flameproof seal on the cable outer sheath which also provides IP and cable retention.
The unique design is available with 1,2 or 3 stage modular inserts, ensuring the best seal can be achieved with the lowest tightening torque.
The gland meets EMC requirement XXXXX .ATEX/IECEx certified along with various other approvals - see below for full technical details.
Available in brass, nickel plated brass, stainless steel or aluminium with both Metric and NPT threadforms.
The Vela is Exe, Exd and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.
Other threadforms available on request.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | IMQ 13 ATEX 018X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx IMQ 13.0006X | IEC 60079-0, 1, 7, 31 |
 |
UL | E199260 | UL514B, UL50E, UL 2225, CSA22.2 No 18.3-12, No 94.2-15, No. 14-18 |
|
UL | E474828 | UL 60079-0, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 21.0183 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WU | |
 |
UKCA | CML 21UKEX1474X | |
 |
CCC | No 2021312313000410 |

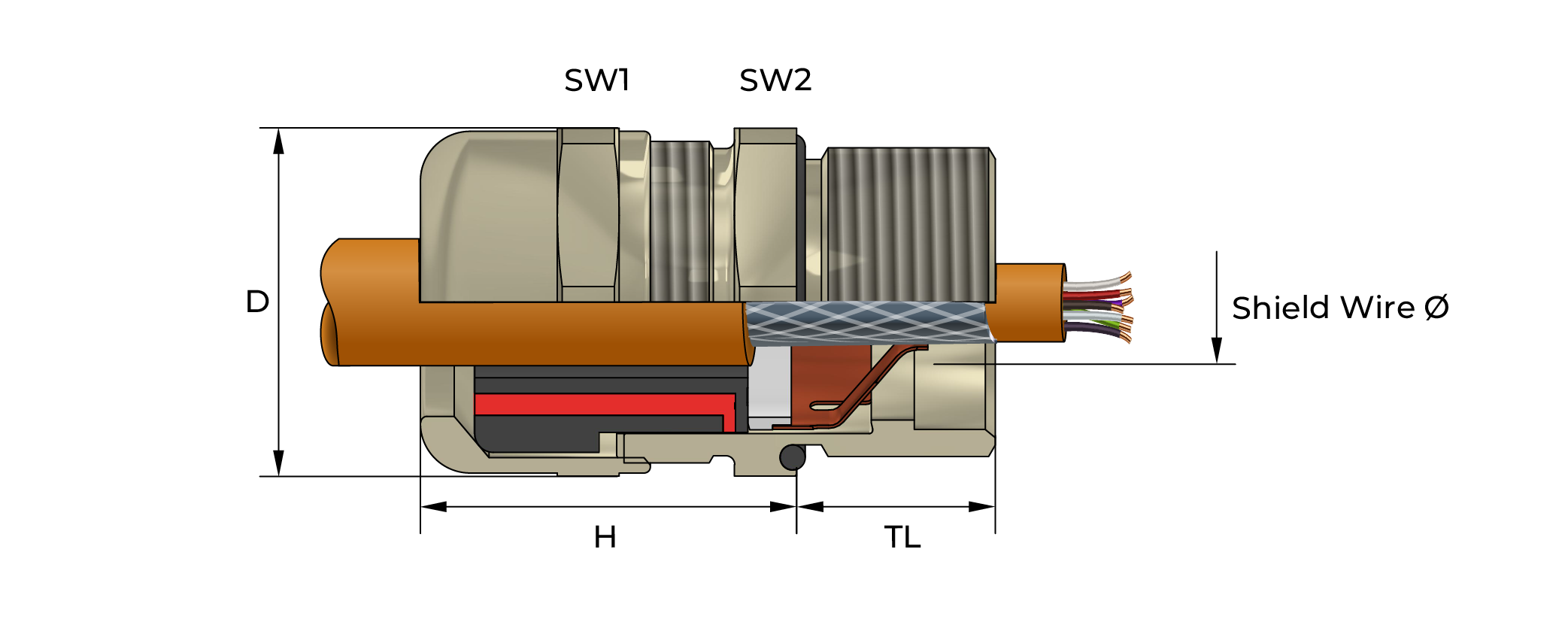

| Thread Size | Cable Ø | Seal Type | Shield Wire Ø | Ex-e TL | Ex-d/e TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| M8x1.25 | 2.0 - 4.0 | Single | 1.5 - 3.5 | 5.0 | - | 11/11 | 12.0 | 18.0 | EBU0XSM |
| M16x1.5 | 4.0 - 8.0 | Double | 2.5 - 5.0 | 9.0 | 16.0 | 20/20 | 22.0 | 30.5 | EBS01SM |
| M16x1.5 | 4.0 - 8.0 | Double | 2.5 - 5.0 | 9.0 | 16.0 | 22/22 | 24.5 | 30.5 | EBS01M |
| M20x1.5 | 4.0 - 12.0 | Triple | 2.5 - 10.0 | 9.0 | 18.0 | 22/22 | 24.5 | 28.5 | EBS1M |
| M25x1.5 | 10.0 - 18.0 | Triple | 8.0 - 14.0 | 9.0 | 16.0 | 28/28 | 31.0 | 32.0 | EBS2M |
| M32x1.5 | 14.0 - 24.0 | Triple | 12.0 - 20.0 | 9.0 | 19.0 | 35/35 | 39.0 | 35.0 | EBS3M |
| M40x1.5 | 22.0 - 32.0 | Triple | 18.0 - 28.0 | 9.0 | 20.0 | 45/45 | 49.5 | 42.5 | EBS4M |
| M50x1.5 | 26.0 - 35.0 | Triple | 22.0 - 31.0 | 9.0 | 20.0 | 50/55 | 61.0 | 45.0 | EBS5M |
| M63x1.5 | 35.0 - 45.0 | Triple | 31.0 - 41.0 | 9.0 | 20.0 | 64/68 | 75.0 | 45.0 | EBS6M |
| M75x1.5 | 46.0 - 62.0 | Triple | 42.0 - 58.0 | 9.0 | 20.0 | 80/80 | 89.0 | 52.5 | EBS7M |
| M90x1.5 | 60.0 - 75.0 | Triple | 56.0 - 71.0 | 9.0 | 20.0 | 95/95 | 105.0 | 57.0 | EBS8M |
| M100x1.5 | 75.0 - 85.0 | Triple | 71.0 - 81.0 | 9.0 | 20.0 | 105/105 | 117.0 | 56.0 | EBS10M |
| M110x1.5 | 85.0 - 95.0 | Triple | 81.0 - 91.0 | 9.0 | 20.0 | 115/115 | 128.0 | 58.0 | EBS11M |
| Thread Size | Cable Ø | Seal Type | Shield Wire Ø | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| NPT 3/8 | 4.0 - 8.0 | Double | 2.5 - 5.0 | 16.0 | 20/20 | 22.0 | 30.5 | EBS01SN |
| NPT 3/8 | 4.0 - 8.0 | Double | 2.5 - 5.0 | 16.0 | 22/22 | 24.5 | 30.5 | EBS01N |
| NPT 1/2 | 4.0 - 12.0 | Triple | 2.5 - 10.0 | 18.0 | 22/22 | 24.5 | 28.5 | EBS1N |
| NPT 3/4 | 10.0 - 18.0 | Triple | 8.0 - 14.0 | 16.0 | 28/28 | 31.0 | 32.5 | EBS2N |
| NPT 1 | 14.0 - 24.0 | Triple | 12.0 - 20.0 | 20.0 | 35/35 | 39.0 | 35.0 | EBS3N |
| NPT 1 1/4 | 22.0 - 32.0 | Triple | 18.0 - 28.0 | 20.0 | 45/45 | 49.5 | 42.5 | EBS4N |
| NPT 1 1/2 | 26.0 - 35.0 | Triple | 22.0 - 31.0 | 20.0 | 50/55 | 61.0 | 45.0 | EBS5N |
| NPT 2 | 35.0 - 45.0 | Triple | 31.0 - 41.0 | 20.0 | 64/68 | 75.0 | 45.0 | EBS6N |
| NPT 2 1/2 | 46.0 - 62.0 | Triple | 42.0 - 58.0 | 21.0 | 80/80 | 89.0 | 56.5 | EBS7N |
| NPT 3 | 60.0 - 75.0 | Triple | 56.0 - 71.0 | 21.0 | 95/95 | 105.0 | 65.0 | EBS8N |
| NPT 4 | 75.0 - 85.0 | Triple | 71.0 - 81.0 | 21.0 | 105/115 | 128.0 | 56.5 | EBS10N |
| NPT 4 | 85.0 - 95.0 | Triple | 81.0 - 91.0 | 21.0 | 115/115 | 128.0 | 58.0 | EBS11N |
