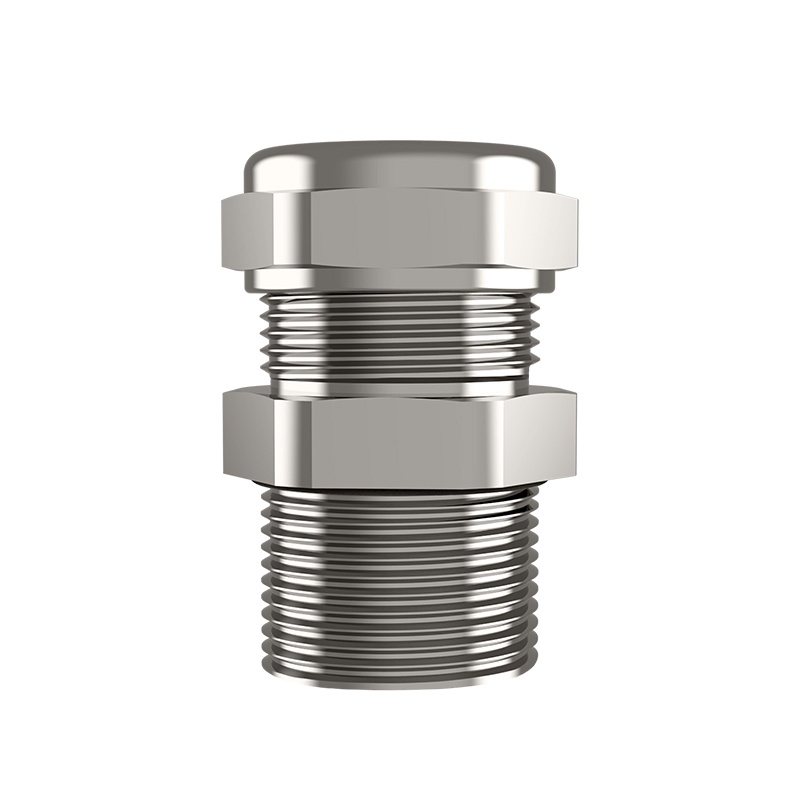

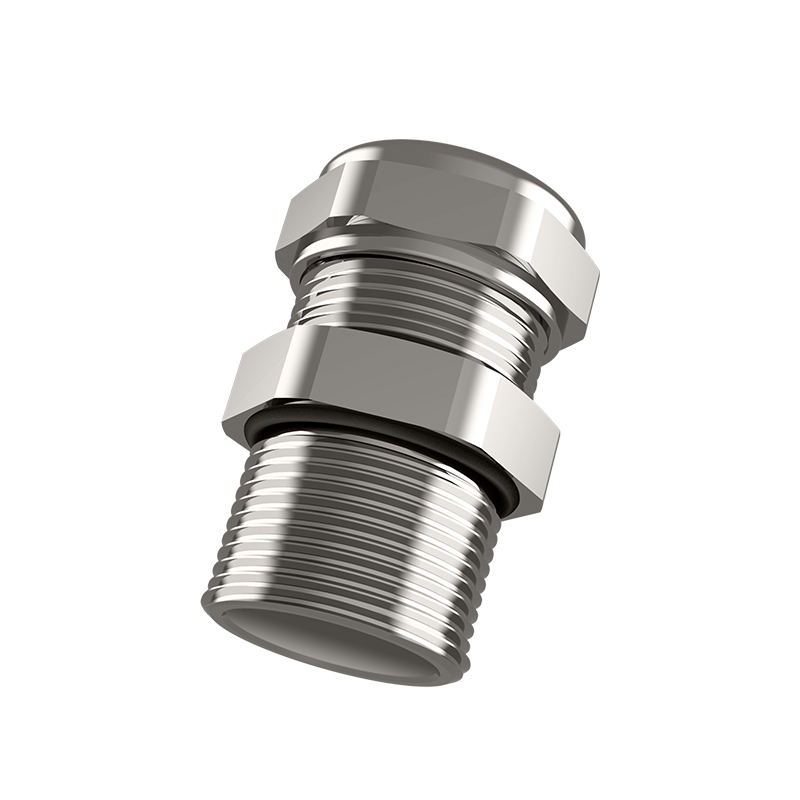

Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb
Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb

Crater系列~矿用隔爆型非铠装格兰头Ex db,eb, I Mb, tb

立即咨询
  • 详细介绍
  • 产品特点
  • 认证
  • METRIC
  • NPT
适用环境
  • I类煤矿，II类--工厂气体，III类--粉尘
ATEX防护类别代码
  • Ex I M，Ex II 2GD
  • Ex db I Mb，Ex eb I Mb
  • Ex db IIC Gb，Ex eb IIC Gb
  • Ex tb IIIC Db
IECEx防护类别代码
  • Ex db I Mb，Ex eb I Mb
  • Ex db IIC Gb，Ex eb IIC Gb
  • Ex tb IIIC Db，IP66/68
IP防护等级
  • IP66，IP68（5 巴 30 分钟）
电缆密封接头材质
  • 黄铜，黄铜镀镍，不锈钢
密封材料
  • 氟丁橡胶，硅胶
工作温度
  • 氟丁橡胶：-40°C to +80°C
  • 硅胶：-60°C to +100°C
螺纹类型
  • 公制，NPT。其他螺纹可按要求提供。
电缆类型
  • 非铠装
附件
  • 锁紧螺母，垫圈，锯齿垫圈，护套，接地片
注意 ⚠
  • 所有附件需单独订购

I类&II类危险区域电缆密封接头，能在煤矿（井上&井下）、石化、化工、粉尘加工等多种危险场所通用

I类煤矿Mb级与II类气体Gb级/粉尘Db级双认证，支持隔爆型、增安型、外壳保护型多种防爆型式，适用Zone 1, 21, Zone 21, 22危险区域环境。

产品上同时标注了煤矿用（I类Mb）和地面工业用（II类Gb/Db）认证

防爆标识Ex db I Mb，Ex eb I Mb; Ex II 2GD || Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db

产品通过全球防爆认证（ATEX, IECEx, EAC, UKCA, INMETRO等）及DNV船级社认证。

适用环境温度-60°C ~ +80°C

IP66/IP68最高防护等级

可选用镀镍黄铜、不锈钢316L，并提供公制螺纹和 NPT 螺纹。


Group II stuffing type hazardous area cable gland, suitable for non-armoured cables (or braided cables where the braid and outer sheath pass into the enclosure, and the requirements of 60079-14 are met.)

The Crater is Exe, Exd and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.

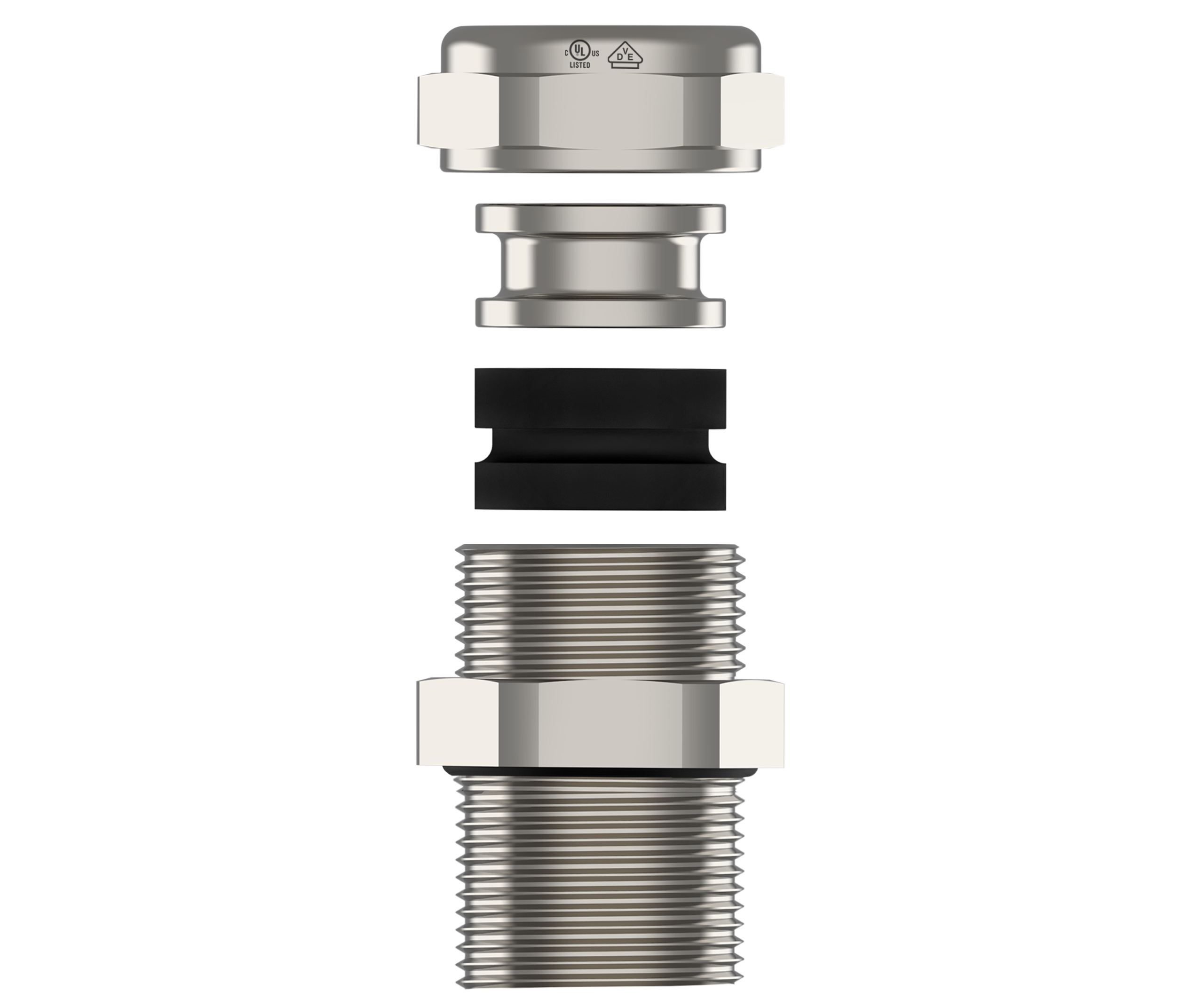

The gland provides both a flameproof seal on the cable outer sheath which also provides IP and cable retention.

ATEX/IECEx certified along with various other approvals - see below for full technical details.

Available in brass, nickel plated brass, stainless steel or aluminium with both Metric and NPT threadforms.

Other threadforms available on request

认证图标 证书名称 证书号 符合标准
ATEX ATEX CESI 13 ATEX 033X EN 60079-0, 1, 7, 31
IECEx IECEx IECEx CES 13.0013X IEC 60079-0, 1, 7, 31
EAC EAC TC RU C-TR.AA87.B.00941 ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
INMETRO INMETRO DNV 21.0184 X ABNT NBR IEC 60079-0, 1, 7, 31
DNV Type Approval DNV Type Approval TAE00003WU
UKCA UKCA MASC MS/18-0240X

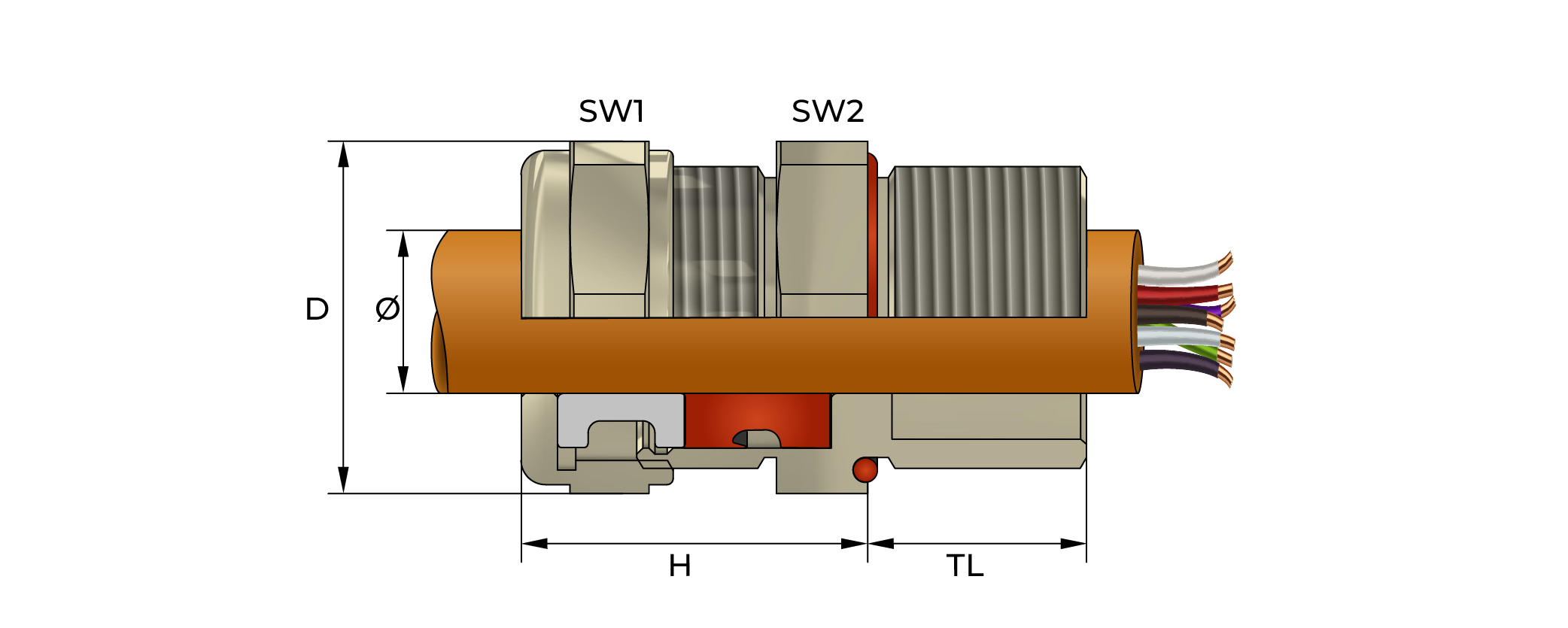

Thread Size Cable Ø TL SW 1/2 Outer Ø 'D' Max. Height 'H' Product Code
M16x1.5 3.0 - 8.5 16.0 26/22 29.0 27.0 MKBU01M2
M16x1.5 6.0 - 9.0 16.0 29/27 31.5 31.5 MKBU01LM1
M16x1.5 9.0 - 12.0 16.0 29/27 31.5 31.5 MKBU01LM2
M20x1.5 6.0 - 9.0 16.0 29/27 31.5 31.5 MKBU1M1
M20x1.5 9.0 - 12.0 16.0 29/27 31.5 31.5 MKBU1M2
M20x1.5 8.5 - 11.5 16.0 30/28 33.5 33.5 MKBU1LM1
M20x1.5 11.5 - 14.5 16.0 30/28 33.5 33.5 MKBU1LM2
M25x1.5 6.0 - 9.0 18.0 29/29 31.5 31.0 MKBU2SM1
M25x1.5 9.0 - 12.0 18.0 29/29 31.5 31.0 MKBU2SM2
M25x1.5 8.5 - 12.5 18.0 34/32 37.0 35.5 MKBU2M1
M25x1.5 12.5 - 16.0 18.0 34/32 37.0 35.5 MKBU2M2
M25x1.5 12.0 - 16.0 18.0 40/36 44.5 35.5 MKBU2LM1
M25x1.5 16.0 - 20.0 18.0 40/36 44.5 35.5 MKBU2LM2
M32x1.5 12.0 - 16.0 18.0 40/40 44.5 36.5 MKBU3SM1
M32x1.5 16.0 - 20.0 18.0 40/40 44.5 36.5 MKBU3SM2
M32x1.5 15.0 - 20.0 18.0 52/48 57.0 43.0 MKBU3M1
M32x1.5 20.0 - 26.0 18.0 52/48 57.0 43.0 MKBU3M2
M40x1.5 15.0 - 20.0 18.0 52/48 57.0 43.0 MKBU4SM1
M40x1.5 20.0 - 26.0 18.0 52/48 57.0 43.0 MKBU4SM2
M40x1.5 20.0 - 26.0 18.0 60/55 66.0 52.0 MKBU4M1
M40x1.5 26.0 - 32.0 18.0 60/55 66.0 52.0 MKBU4M2
M50x1.5 22.0 - 28.0 18.0 70/60 77.0 52.0 MKBU5SM1
M50x1.5 28.0 - 35.0 18.0 70/60 77.0 52.0 MKBU5SM2
M50x1.5 27.0 - 34.0 18.0 70/70 77.0 56.0 MKBU5M1
M50x1.5 34.0 - 41.0 18.0 70/70 77.0 56.0 MKBU5M2
M63x1.5 35.0 - 40.0 20.0 80/75 89.5 63.5 MKBU6SM1
M63x1.5 40.0 - 45.0 20.0 80/75 89.5 63.5 MKBU6SM2
M63x1.5 40.0 - 46.0 20.0 85/85 94.0 64.0 MKBU6M1
M63x1.5 46.0 - 52.0 20.0 85/85 94.0 64.0 MKBU6M2
M75x1.5 40.0 - 46.0 20.0 85/85 94.0 64.0 MKBU7SM1
M75x1.5 46.0 - 52.0 20.0 85/85 94.0 64.0 MKBU7SM2
M75x1.5 45.0 - 52.0 20.0 95/90 105.0 79.0 MKBU7M1
M75x1.5 52.0 - 60.0 20.0 95/90 105.0 79.0 MKBU7M2
M90x1.5 45.0 - 52.0 20.0 95/95 105.0 79.0 MKBU8SM1
M90x1.5 52.0 - 60.0 20.0 95/95 105.0 79.0 MKBU8SM2
M90x1.5 60.0 - 66.0 20.0 115/110 127.0 86.0 MKBU8M1
M90x1.5 66.0 - 72.0 20.0 115/110 127.0 86.0 MKBU8M2
Thread Size Cable Ø TL SW 1/2 Outer Ø 'D' Max. Height 'H' Product Code
NPT 3/8 3.0 - 8.5 16.0 26/22 29.0 27.0 MKBU01N2
NPT 3/8 6.0 - 9.0 16.0 29/27 31.5 31.5 MKBU01LN1
NPT 3/8 9.0 - 12.0 16.0 29/27 31.5 31.5 MKBU01LN2
NPT 1/2 6.0 - 9.0 21.0 29/27 31.5 31.5 MKBU1N1
NPT 1/2 9.0 - 12.0 21.0 29/27 31.5 31.5 MKBU1N2
NPT 1/2 8.5 - 11.5 21.0 30/28 33.5 33.5 MKBU1LN1
NPT 1/2 11.5 - 14.5 21.0 30/28 33.5 33.5 MKBU1LN2
NPT 3/4 6.0 - 9.0 21.0 29/29 31.5 31.0 MKBU2SN1
NPT 3/4 9.0 - 12.0 21.0 29/29 31.5 31.0 MKBU2SN2
NPT 3/4 8.5 - 12.5 21.0 34/32 37.0 35.5 MKBU2N1
NPT 3/4 12.5 - 16.0 21.0 34/32 37.0 35.5 MKBU2N2
NPT 3/4 12.0 - 16.0 21.0 40/36 44.5 35.0 MKBU2LN1
NPT 3/4 16.0 - 20.0 21.0 40/36 44.5 35.0 MKBU2LN2
NPT 1 12.0 - 16.0 26.0 40/40 44.5 36.5 MKBU3SN1
NPT 1 16.0 - 20.0 26.0 40/40 44.5 36.5 MKBU3SN2
NPT 1 15.0 - 20.0 26.0 52/48 57.0 42.5 MKBU3N1
NPT 1 20.0 - 26.0 26.0 52/48 57.0 42.5 MKBU3N2
NPT 1 1/4 15.0 - 20.0 28.0 52/48 57.0 43.0 MKBU4SN1
NPT 1 1/4 20.0 - 26.0 28.0 52/48 57.0 43.0 MKBU4SN2
NPT 1 1/4 20.0 - 26.0 28.0 60/55 66.0 52.0 MKBU4N1
NPT 1 1/4 26.0 - 32.0 28.0 60/55 66.0 52.0 MKBU4N2
NPT 1 1/2 22.0 - 28.0 28.0 70/60 77.0 52.0 MKBU5SN1
NPT 1 1/2 28.0 - 35.0 28.0 70/60 77.0 52.0 MKBU5SN2
NPT 1 1/2 27.0 - 34.0 28.0 70/70 77.0 56.0 MKBU5N1
NPT 1 1/2 34.0 - 41.0 28.0 70/70 77.0 56.0 MKBU5N2
NPT 2 35.0 - 40.0 28.0 80/75 89.5 63.0 MKBU6SN1
NPT 2 40.0 - 45.0 28.0 80/75 89.5 63.0 MKBU6SN2
NPT 2 40.0 - 46.0 28.0 85/85 94.0 64.0 MKBU6N1
NPT 2 46.0 - 52.0 28.0 85/85 94.0 64.0 MKBU6N2
NPT 2 1/2 40.0 - 46.0 41.0 85/85 94.0 64.0 MKBU7SN1
NPT 2 1/2 46.0 - 52.0 41.0 85/85 94.0 64.0 MKBU7SN2
NPT 2 1/2 45.0 - 52.0 41.0 95/90 105.0 79.0 MKBU7N1
NPT 2 1/2 52.0 - 60.0 41.0 95/90 105.0 79.0 MKBU7N2
NPT 3 45.0 - 52.0 43.0 95/95 105.0 79.0 MKBU8SN1
NPT 3 52.0 - 60.0 43.0 95/95 105.0 79.0 MKBU8SN2
NPT 3 60.0 - 66.0 43.0 115/110 127.0 86.0 MKBU8N1
NPT 3 66.0 - 72.0 43.0 115/110 127.0 86.0 MKBU8N2
