| 适用环境 | · II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex eb IIC Gb · Ex tb IIIC Db |
| IECEx防护类别代码 | · Ex eb IIC Gb · Ex tb IIIC Db, IP66/68 |
| IP防护等级 | · IP66 , IP68（5 巴 30 分钟） |
| 电缆密封接头材质 | · 黄铜镀镍，不锈钢316L |
| 密封材料 | · 无烟卤硅胶 |
| 工作温度 | · 硅胶: -60°C to +130°C |
| 螺纹类型 | · 公制，NPT。其他螺纹可按要求提供。 |
| 电缆类型 | · 非铠装电缆 |
| 附件 | · 锁紧螺母，垫圈，锯齿垫圈，护套，接地片 |
| 注意 ⚠️ | · 所有附件需单独订购 |

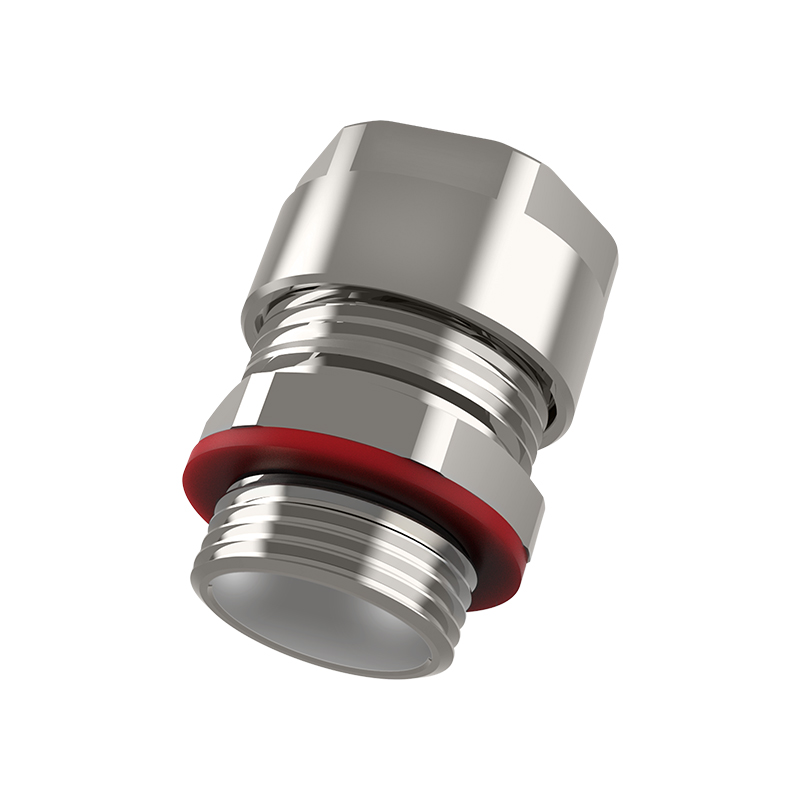

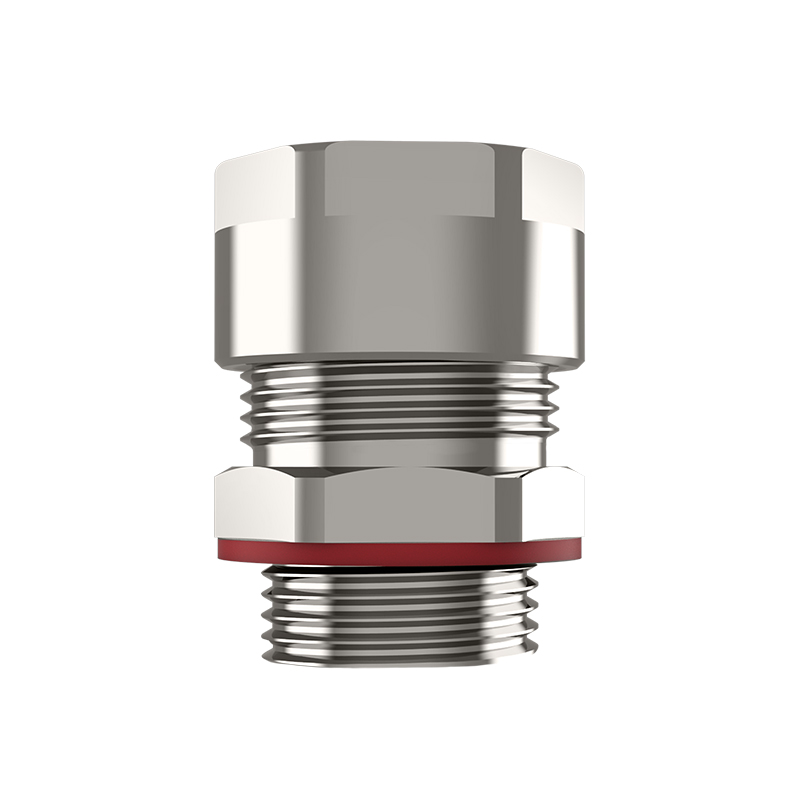

II类危险区域电缆密封接头，适用于非铠装电缆和编织电缆
产品通过全球防爆认证（ATEX, IECEx, EAC, UKCA, CCC, INMETRO等）及DNV船级社认证。

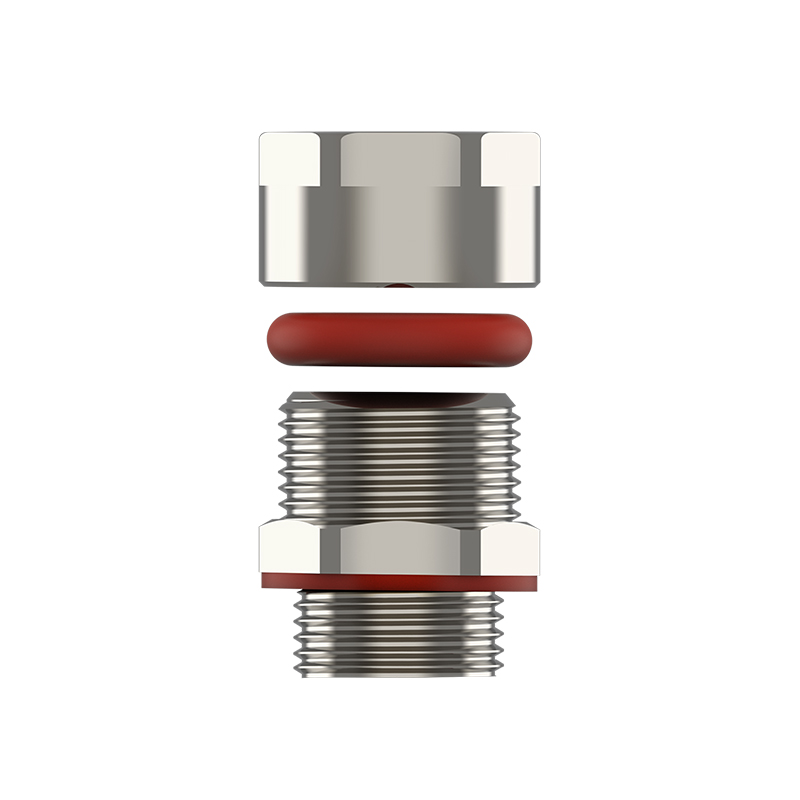

位移密封结构，减少电缆冷流（冷流变形）特性的影响
通过Exe 和 Ext，适用Zone 1, 21, Zone 21, 22危险区域安装
适用环境温度-60°C ~ +80°C
IP66/IP68最高防护等级
可选用镀镍黄铜、不锈钢316L，并提供公制螺纹和 NPT 螺纹。
Group II stuffing type hazardous area cable gland, suitable for non-armoured cables (or braided cables where the braid and outer sheath pass into the enclosure, and the requirements of 60079-14 are met.)
Exe and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.
The gland provides both a flameproof seal on the cable outer sheath which also provides IP and cable retention.
Reducing the effects of coldflow characteristics of cable
ATEX/IECEx certified along with various other approvals - see full technical details.
Available in brass, nickel plated brass or stainless steel with both Metric and NPT threadforms.
Other threadforms available on request.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | CESI 21 ATEX 031X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx CES 22.0009X | IEC 60079-0, 1, 7, 31 |
 |
EAC | TC RU C-TR.AA87.B.01120/23 | ГОСТ 31610.0-2014 ГОСТ IEC 60079-1, 31 |
 |
INMETRO | DNV23.1054X100 | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
CCC | No 2024312313000604 | |
 |
DNV Type Approval | TAE00004T4 |

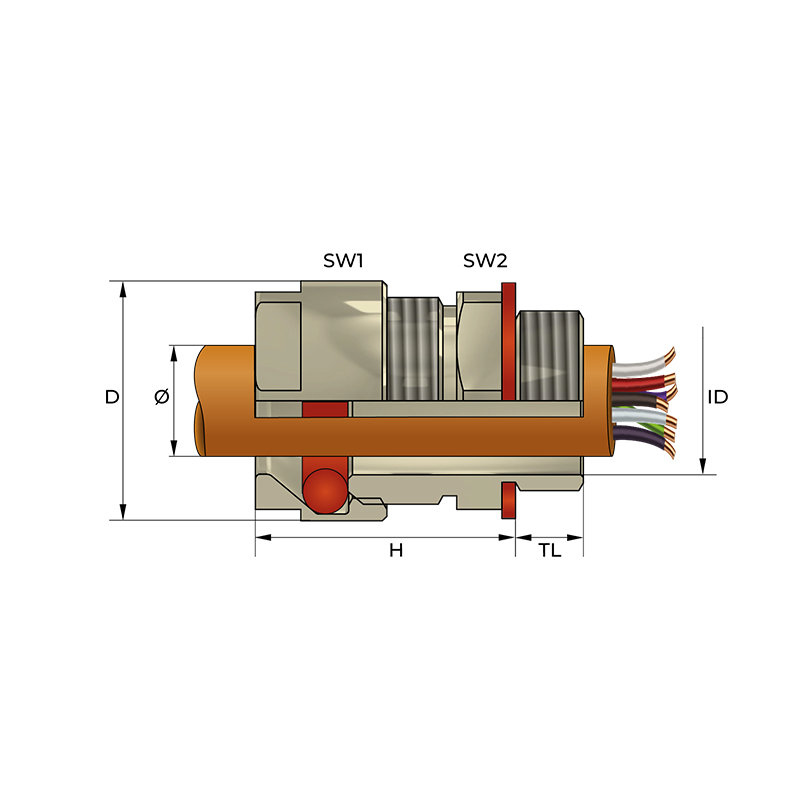

| Thread Size | Cable Ø | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|
| M12x1.5 | 3.0 - 8.0 | 9.0 | 16/16 | 18.0 | 29.3 | CRX0SM |
| M16x1.5 | 3.0 - 8.0 | 9.0 | 20/16 | 22.0 | 28.2 | CRX01SM |
| M16x1.5 | 5.5 - 12.0 | 9.0 | 20/22 | 22.0 | 28.2 | CRX01M |
| M20x1.5 | 3.0 - 8.0 | 9.0 | 24/16 | 26.5 | 28.2 | CRX1XSM |
| M20x1.5 | 5.5 - 12.0 | 9.0 | 24/22 | 26.5 | 29.2 | CRX1SM |
| M20x1.5 | 9.0 - 16.0 | 9.0 | 24/24 | 26.5 | 32.3 | CRX1M |
| M25x1.5 | 9.0 - 16.0 | 9.0 | 30/24 | 33.0 | 32.3 | CRX2SM |
| M25x1.5 | 12.0 - 20.0 | 9.0 | 30/30 | 33.0 | 35.6 | CRX2M |
| M32x1.5 | 12.0 - 20.0 | 9.0 | 36/30 | 39.8 | 35.6 | CRX3SM |
| M32x1.5 | 16.0 - 26.0 | 9.0 | 36/36 | 39.8 | 38.6 | CRX3M |
| M40x1.5 | 16.0 - 26.0 | 9.0 | 46/36 | 51.0 | 38.6 | CRX4SM |
| M40x1.5 | 20.0 - 33.0 | 9.0 | 46/46 | 51.0 | 44.5 | CRX4M |
| M50x1.5 | 20.0 - 33.0 | 9.0 | 55/46 | 61.0 | 44.5 | CRX5SM |
| M50x1.5 | 29.0 - 41.0 | 9.0 | 55/55 | 61.0 | 49.3 | CRX5M |
| M63x1.5 | 29.0 - 41.0 | 9.0 | 67/55 | 73.0 | 49.3 | CRX6SM |
| M63x1.5 | 36.0 - 52.0 | 9.0 | 67/65 | 73.0 | 55.5 | CRX6M |
| M75x1.5 | 36.0 - 52.0 | 9.0 | 80/65 | 89.0 | 55.5 | CRX7SM |
| M75x1.5 | 50.0 - 65.0 | 9.0 | 80/80 | 89.0 | 59.5 | CRX7M |
| M80x1.5 | 50.0 - 65.0 | 9.0 | 95/80 | 105.0 | 59.5 | CRX80SM |
| M80x1.5 | 61.0 - 78.0 | 9.0 | 105/95 | 118.0 | 67.0 | CRX80M |
| M90x1.5 | 50.0 - 65.0 | 9.0 | 105/80 | 118.0 | 59.5 | CRX8SM |
| M90x1.5 | 61.0 - 78.0 | 9.0 | 105/95 | 118.0 | 67.0 | CRX8M |
| M100x1.5 | 61.0 - 78.0 | 9.0 | 120/95 | 134.0 | 67.0 | CRX9SM |
| M100x1.5 | 75.0 - 89.0 | 9.0 | 120/106 | 134.0 | 60.0 | CRX9M |
| M110x1.5 | 75.0 - 89.0 | 9.0 | 120/106 | 134.0 | 60.0 | CRX10SM |
| M110x1.5 | 88.0 - 104.0 | 9.0 | 120/115 | 134.0 | 75.0 | CRX10M |
| M115x1.5 | 75.0 - 89.0 | 9.0 | 120/106 | 134.0 | 60.0 | CRX11SM |
| M115x1.5 | 88.0 - 104.0 | 9.0 | 120/115 | 134.0 | 75.0 | CRX11M |
| Thread Size | Cable Ø | TL | SW 1/2 | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|
| 1/4 | 3.0 - 8.0 | 16.0 | 16/16 | 18.0 | 29.3 | CRX0SN |
| 3/8 | 3.0 - 8.0 | 16.0 | 20/16 | 22.0 | 28.2 | CRX01SN |
| 3/8 | 5.5 - 12.0 | 16.0 | 20/22 | 22.0 | 28.2 | CRX01N |
| 1/2 | 3.0 - 8.0 | 21.0 | 24/16 | 26.5 | 28.2 | CRX1XSN |
| 1/2 | 5.5 - 12.0 | 21.0 | 24/22 | 26.5 | 29.2 | CRX1SN |
| 1/2 | 9.0 - 16.0 | 21.0 | 24/24 | 26.5 | 32.3 | CRX1N |
| 3/4 | 9.0 - 16.0 | 21.0 | 30/24 | 33.0 | 32.3 | CRX2SN |
| 3/4 | 12.0 - 20.0 | 21.0 | 30/30 | 33.0 | 35.6 | CRX2N |
| 1 | 12.0 - 20.0 | 26.0 | 36/30 | 39.8 | 35.6 | CRX3SN |
| 1 | 16.0 - 26.0 | 26.0 | 36/36 | 39.8 | 38.6 | CRX3N |
| 1 1/4 | 16.0 - 26.0 | 28.0 | 46/36 | 51.0 | 38.6 | CRX4SN |
| 1 1/4 | 20.0 - 33.0 | 28.0 | 46/46 | 51.0 | 44.5 | CRX4N |
| 1 1/2 | 20.0 - 33.0 | 28.0 | 55/46 | 61.0 | 44.5 | CRX5SN |
| 1 1/2 | 29.0 - 41.0 | 28.0 | 55/55 | 61.0 | 49.3 | CRX5N |
| 2 | 29.0 - 41.0 | 28.0 | 67/55 | 73.0 | 49.3 | CRX6SN |
| 2 | 36.0 - 52.0 | 28.0 | 67/65 | 73.0 | 55.5 | CRX6N |
| 2 1/2 | 36.0 - 52.0 | 41.0 | 80/65 | 89.0 | 55.5 | CRX7SN |
| 2 1/2 | 50.0 - 65.0 | 41.0 | 80/80 | 89.0 | 59.5 | CRX7N |
| 3 | 50.0 - 65.0 | 43.0 | 105/80 | 118.0 | 59.5 | CRX80SN |
| 3 | 61.0 - 78.0 | 43.0 | 105/95 | 118.0 | 67.0 | CRX80N |
| 3 1/2 | 61.0 - 78.0 | 43.0 | 120/95 | 134.0 | 67.0 | CRX8SN |
| 3 1/2 | 75.0 - 89.0 | 43.0 | 120/106 | 134.0 | 60.0 | CRX8N |
| 4 | 75.0 - 89.0 | 44.0 | 120/106 | 134.0 | 60.0 | CRX9SN |
| 4 | 88.0 - 104.0 | 44.0 | 120/115 | 134.0 | 75.0 | CRX9N |
