| 适用环境 | · I类--煤矿，II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex I M, Ex II 2GD · Ex db I Mb, Ex eb I Mb · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db · IP66/68 |
| IECEx防护类别代码 | · Ex db I Mb and Ex eb I Mb · Ex db IIC Gb and Ex eb IIC Gb · Ex tb IIIC Db · IP66/68 |
| IP防护等级 | · IP66 , IP68（5 巴 30 分钟） |
| 电缆密封接头材质 | · 黄铜镀镍，不锈钢316L |
| 密封材料 | · 氯丁橡胶，硅胶 |
| 工作温度 | · 氯丁橡胶: -40°C to +100°C · 硅胶: -60°C to +130°C |
| 螺纹类型 | · 公制，NPT。其他螺纹可按要求提供。 |
| 附件 | · 垫圈 |
| 注意 ⚠️ | · 所有附件需单独订购 |
全球防爆认证（ATEX, IECEx, EAC, CCC, DNV, INMETRO等）
适用于存在气体和粉尘的爆炸性环境ZONE1/ZONE2，ZONE21/ZONE 22
适用环境温度-60°C ~ +130°C
IP66/IP68最高防护等级

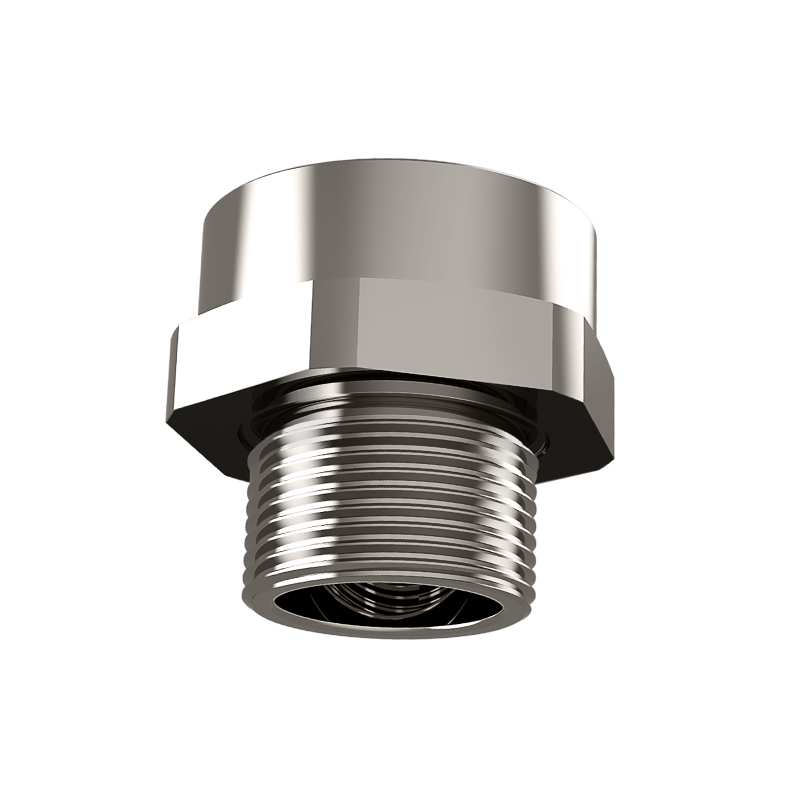

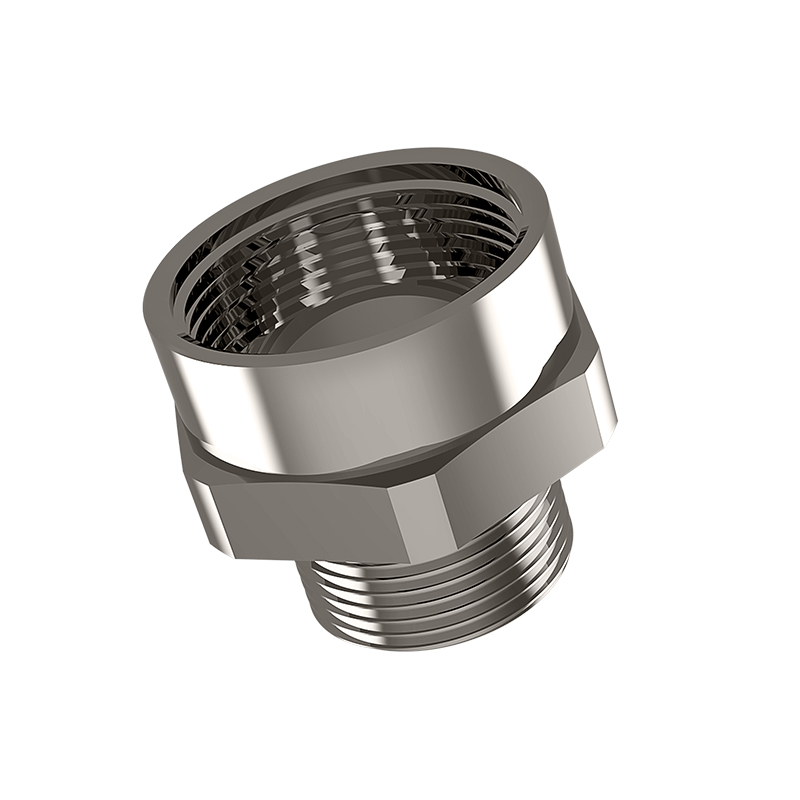

扩径，用于各种内外螺纹类型和尺寸的转换，可用于本安回路。
For applications in explosive environments.
For Group II & III (Gas & Dust) - Ex-d/e.
Enlargers for the transition of different thread types and sizes.
Can be used with intrinsically safe circuits.
Up-to-date international approvals.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | CESI 13 ATEX 066X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx CES 13.0022X | IEC 60079-0, 1, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 17.0055 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WU | |
 |
UKCA | CML 22UKEX1184X | |
 |
CCC | No 2021312313000413 |

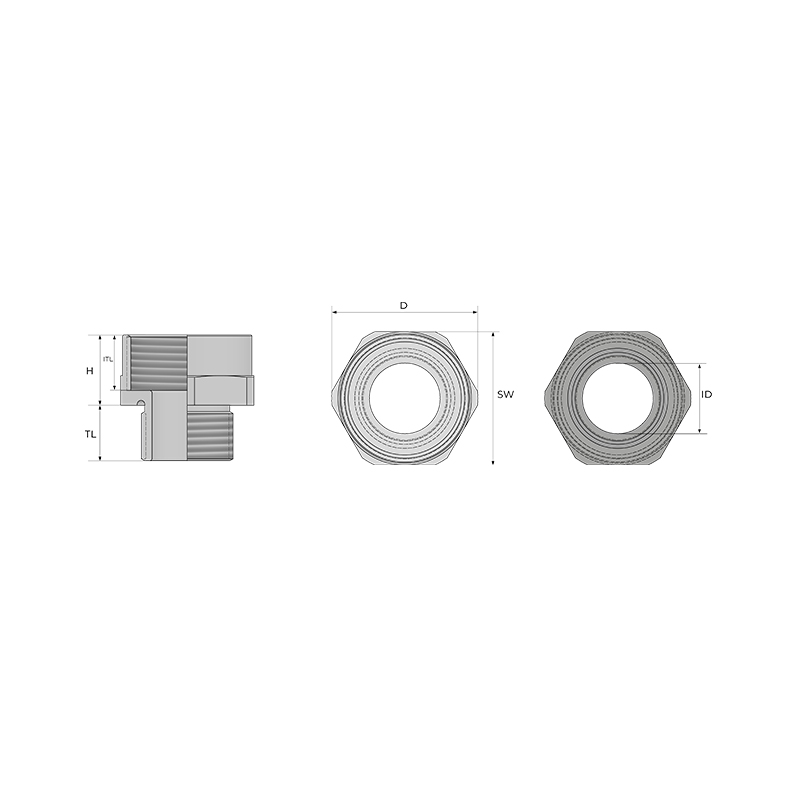

| Thread Size M | Thread Size F | TL | ITL | SW | Outer Ø 'D' | Inner Ø 'ID' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| M16x1.5 | M20x1.5 | 16.0 | 16.0 | 25 | 27.5 | 10.0 | 21.0 | B-RB1M01M |
| M16x1.5 | M25x1.5 | 16.0 | 18.0 | 30 | 33.0 | 10.0 | 23.0 | B-RB2M01M |
| M16x1.5 | M32x1.5 | 16.0 | 20.0 | 36 | 39.5 | 10.0 | 25.0 | B-RB3M01M |
| M20x1.5 | M25x1.5 | 16.0 | 18.0 | 30 | 33.0 | 14.0 | 23.0 | B-RB2M1M |
| M20x1.5 | M32x1.5 | 16.0 | 20.0 | 36 | 39.5 | 14.0 | 25.0 | B-RB3M1M |
| M20x1.5 | M40x1.5 | 16.0 | 20.0 | 45 | 50.0 | 14.0 | 25.0 | B-RB4M1M |
| M25x1.5 | M32x1.5 | 18.0 | 20.0 | 36 | 39.5 | 19.0 | 25.0 | B-RB3M2M |
| M25x1.5 | M40x1.5 | 18.0 | 20.0 | 45 | 50.0 | 19.0 | 25.0 | B-RB4M2M |
| M25x1.5 | M50x1.5 | 18.0 | 20.0 | 55 | 61.0 | 19.0 | 25.0 | B-RB5M2M |
| M32x1.5 | M40x1.5 | 20.0 | 20.0 | 45 | 50.0 | 26.0 | 25.0 | B-RB4M3M |
| M32x1.5 | M50x1.5 | 20.0 | 20.0 | 55 | 61.0 | 26.0 | 25.0 | B-RB5M3M |
| M32x1.5 | M60x1.5 | 20.0 | 20.0 | 68 | 75.0 | 26.0 | 25.5 | B-RB60M3M |
| M40x1.5 | M50x1.5 | 20.0 | 20.0 | 55 | 61.0 | 34.0 | 25.0 | B-RB5M4M |
| M40x1.5 | M60x1.5 | 20.0 | 20.0 | 68 | 75.0 | 34.0 | 25.5 | B-RB60M4M |
| M40x1.5 | M63x1.5 | 20.0 | 20.0 | 68 | 75.0 | 34.0 | 25.5 | B-RB6M4M |
| M40x1.5 | M70x1.5 | 20.0 | 20.0 | 80 | 88.5 | 34.0 | 25.5 | B-RB70M4M |
| M40x1.5 | M75x1.5 | 20.0 | 20.0 | 80 | 88.5 | 34.0 | 25.5 | B-RB7M4M |
| M50x1.5 | M60x1.5 | 20.0 | 20.0 | 68 | 75.0 | 44.0 | 25.5 | B-RB60M5M |
| M50x1.5 | M63x1.5 | 20.0 | 20.0 | 68 | 75.0 | 44.0 | 25.5 | B-RB6M5M |
| M50x1.5 | M70x1.5 | 20.0 | 20.0 | 80 | 88.5 | 44.0 | 25.5 | B-RB70M5M |
| M50x1.5 | M75x1.5 | 20.0 | 20.0 | 80 | 88.5 | 44.0 | 25.5 | B-RB7M5M |
| M50x1.5 | M80x1.5 | 20.0 | 20.0 | 90 | 100.0 | 44.0 | 25.5 | B-RB80M5M |
| M60x1.5 | M63x1.5 | 20.0 | 20.0 | 68 | 75.0 | 54.0 | 25.5 | B-RB6M60M |
| M60x1.5 | M70x1.5 | 20.0 | 20.0 | 80 | 88.5 | 54.0 | 25.5 | B-RB70M60M |
| M60x1.5 | M75x1.5 | 20.0 | 20.0 | 80 | 88.5 | 54.0 | 25.5 | B-RB7M60M |
| M60x1.5 | M80x1.5 | 20.0 | 20.0 | 90 | 100.0 | 54.0 | 25.5 | B-RB80M60M |
| M60x1.5 | M85x1.5 | 20.0 | 20.0 | 95 | 105.0 | 54.0 | 25.5 | B-RB85M60M |
| M60x1.5 | M90x1.5 | 20.0 | 20.0 | 95 | 105.0 | 54.0 | 25.5 | B-RB8M60M |
| M63x1.5 | M70x1.5 | 20.0 | 20.0 | 80 | 88.5 | 57.0 | 25.5 | B-RB70M6M |
| M63x1.5 | M75x1.5 | 20.0 | 20.0 | 80 | 88.5 | 57.0 | 25.5 | B-RB7M6M |
| M63x1.5 | M80x1.5 | 20.0 | 20.0 | 90 | 100.0 | 57.0 | 25.5 | B-RB80M6M |
| M63x1.5 | M85x1.5 | 20.0 | 20.0 | 95 | 105.0 | 57.0 | 25.5 | B-RB85M6M |
| M63x1.5 | M90x1.5 | 20.0 | 20.0 | 95 | 105.0 | 57.0 | 25.5 | B-RB8M6M |
| M70x1.5 | M75x1.5 | 20.0 | 20.0 | 80 | 88.5 | 64.0 | 25.5 | B-RB7M70M |
| M70x1.5 | M80x1.5 | 20.0 | 20.0 | 90 | 100.0 | 64.0 | 25.5 | B-RB80M70M |
| M70x1.5 | M85x1.5 | 20.0 | 20.0 | 95 | 105.0 | 64.0 | 25.5 | B-RB85M70M |
| M70x1.5 | M90x1.5 | 20.0 | 20.0 | 95.0 | 105.0 | 64.0 | 25.5 | B-RB8M70M |
| M70x1.5 | M80x1.5 | 20.0 | 20.0 | 90.0 | 100.0 | 69.0 | 25.5 | B-RB80M7M |
| M75x1.5 | M85x1.5 | 20.0 | 20.0 | 95.0 | 105.0 | 69.0 | 25.5 | B-RB85M7M |
| M75x1.5 | M90x1.5 | 20.0 | 20.0 | 95.0 | 105.0 | 69.0 | 25.5 | B-RB8M7M |
| M75x1.5 | M100x1.5 | 20.0 | 20.0 | 110.0 | 123.0 | 69.0 | 25.5 | B-RB9M7M |
| M80x1.5 | M85x1.5 | 20.0 | 20.0 | 95.0 | 105.0 | 72.0 | 25.5 | B-RB85M80M |
| M80x1.5 | M90x1.5 | 20.0 | 20.0 | 95.0 | 105.0 | 72.0 | 25.5 | B-RB8M80M |
| M80x1.5 | M100x1.5 | 20.0 | 20.0 | 110.0 | 123.0 | 72.0 | 25.5 | B-RB9M80M |
| M80x1.5 | M110x1.5 | 20.0 | 20.0 | 120.0 | 134.0 | 72.0 | 26.0 | B-RB10M80M |
| M85x1.5 | M90x1.5 | 20.0 | 20.0 | 95.0 | 105.0 | 77.0 | 25.5 | B-RB8M85M |
| M85x1.5 | M100x1.5 | 20.0 | 20.0 | 110.0 | 123.0 | 77.0 | 25.5 | B-RB9M85M |
| M85x1.5 | M110x1.5 | 20.0 | 20.0 | 120.0 | 134.0 | 77.0 | 26.0 | B-RB10M85M |
| M90x1.5 | M100x1.5 | 20.0 | 20.0 | 110.0 | 123.0 | 84.0 | 26.0 | B-RB9M8M |
| M90x1.5 | M110x1.5 | 20.0 | 20.0 | 120.0 | 134.0 | 84.0 | 26.0 | B-RB10M8M |
| M100x1.5 | M110x1.5 | 20.0 | 20.0 | 120.0 | 134.0 | 94.0 | 26.0 | B-RB10M9M |
| Thread Size M | Thread Size F | TL | ITL | SW | Outer Ø 'D' | Inner Ø 'ID' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| NPT 3/8 | M16x1.5 | 16.0 | 16.0 | 22.0 | 24.0 | 12.0 | 20.5 | B-RB01M01N |
| NPT 3/8 | M20x1.5 | 16.0 | 16.0 | 25.0 | 27.5 | 12.0 | 21.0 | B-RB1M01N |
| NPT 3/8 | M25x1.5 | 16.0 | 18.0 | 30.0 | 33.0 | 14.5 | 23.0 | B-RB2M01N |
| NPT 3/8 | M32x1.5 | 16.0 | 20.0 | 36.0 | 39.5 | 12.0 | 25.0 | B-RB3M01N |
| NPT 3/8 | M20x1.5 | 21.0 | 16.0 | 25.0 | 27.5 | 14.5 | 21.0 | B-RB1M1N |
| NPT 1/2 | M25x1.5 | 21.0 | 18.0 | 30.0 | 33.0 | 14.5 | 23.0 | B-RB2M1N |
| NPT 1/2 | M32x1.5 | 21.0 | 20.0 | 36.0 | 39.5 | 14.5 | 25.0 | B-RB3M1N |
| NPT 1/2 | M40x1.5 | 20.0 | 20.0 | 45.0 | 50.0 | 14.5 | 26.0 | B-RB4M1N |
| NPT 3/4 | M20x1.5 | 21.0 | 16.0 | 30.0 | 33.0 | 14.5 | 21.0 | B-RB1M2N |
| NPT 3/4 | M32x1.5 | 21.0 | 20.0 | 36.0 | 39.5 | 19.0 | 25.0 | B-RB3M2N |
| NPT 3/4 | M40x1.5 | 21.0 | 20.0 | 45.0 | 50.0 | 19.0 | 25.0 | B-RB4M2N |
| NPT 3/4 | M50x1.5 | 21.0 | 20.0 | 55.0 | 61.0 | 19.0 | 25.0 | B-RB5M2N |
| NPT 3/4 | M32x1.5 | 26.0 | 20.0 | 36.0 | 39.5 | 26.0 | 25.0 | B-RB3M3N |
| NPT 3/4 | M40x1.5 | 26.0 | 20.0 | 45.0 | 50.0 | 26.0 | 25.0 | B-RB4M3N |
| NPT 1 | M50x1.5 | 26.0 | 20.0 | 55.0 | 61.0 | 26.0 | 25.0 | B-RB5M3N |
| NPT 1 | M60x1.5 | 26.0 | 20.0 | 68.0 | 75.0 | 26.0 | 25.5 | B-RB60M3N |
| NPT 1 | M63x1.5 | 26.0 | 20.0 | 68.0 | 75.0 | 26.0 | 25.0 | B-RB6M3N |
| NPT 1 1/4 | M40x1.5 | 28.0 | 20.0 | 45.0 | 50.0 | 35.0 | 25.0 | B-RB4M4N |
| NPT 1 1/4 | M50x1.5 | 28.0 | 20.0 | 55.0 | 61.0 | 35.0 | 25.0 | B-RB5M4N |
| NPT 1 1/4 | M60x1.5 | 28.0 | 20.0 | 68.0 | 75.0 | 35.0 | 25.5 | B-RB60M4N |
| NPT 1 1/4 | M63x1.5 | 28.0 | 20.0 | 68.0 | 75.0 | 35.0 | 25.5 | B-RB6M4N |
| NPT 1 1/4 | M70x1.5 | 28.0 | 20.0 | 80.0 | 88.5 | 35.0 | 25.5 | B-RB70M4N |
| NPT 1 1/4 | M75x1.5 | 28.0 | 20.0 | 80.0 | 88.5 | 35.0 | 25.5 | B-RB7M4N |
| NPT 1 1/4 | M50x1.5 | 28.0 | 20.0 | 55.0 | 61.0 | 40.0 | 25.0 | B-RB5M5N |
| NPT 1 1/4 | M60x1.5 | 28.0 | 20.0 | 68.0 | 75.0 | 40.0 | 25.5 | B-RB60M5N |
| NPT 1 1/2 | M63x1.5 | 28.0 | 20.0 | 68.0 | 75.0 | 40.0 | 25.5 | B-RB6M5N |
| NPT 1 1/2 | M70x1.5 | 28.0 | 20.0 | 80.0 | 88.5 | 40.0 | 25.5 | B-RB70M5N |
| NPT 1 1/2 | M75x1.5 | 28.0 | 20.0 | 80.0 | 88.5 | 40.0 | 25.5 | B-RB7M5N |
| NPT 2 | M63x1.5 | 28.0 | 20.0 | 68.0 | 75.0 | 51.0 | 25.5 | B-RB6M6N |
| NPT 2 | M70x1.5 | 28.0 | 20.0 | 80.0 | 88.5 | 51.0 | 25.5 | B-RB70M6N |
| NPT 2 | M75x1.5 | 28.0 | 20.0 | 80.0 | 88.5 | 51.0 | 25.5 | B-RB7M6N |
| NPT 2 | M80x1.5 | 28.0 | 20.0 | 90.0 | 100.0 | 51.0 | 26.0 | B-RB80M6N |
| NPT 2 | M85x1.5 | 28.0 | 20.0 | 95.0 | 105.0 | 51.0 | 26.0 | B-RB85M6N |
| NPT 2 | M90x1.5 | 28.0 | 20.0 | 95.0 | 105.0 | 51.0 | 26.0 | B-RB8M6N |
| NPT 2 | M75x1.5 | 41.0 | 20.0 | 80.0 | 88.5 | 62.0 | 25.5 | B-RB7M7N |
| NPT 2 1/2 | M80x1.5 | 41.0 | 20.0 | 90.0 | 100.0 | 62.0 | 26.0 | B-RB80M7N |
| NPT 2 1/2 | M85x1.5 | 41.0 | 20.0 | 95.0 | 105.0 | 62.0 | 26.0 | B-RB85M7N |
| NPT 2 1/2 | M90x1.5 | 41.0 | 20.0 | 95.0 | 105.0 | 62.0 | 26.0 | B-RB8M7N |
| NPT 3 | M85x1.5 | 43.0 | 20.0 | 95.0 | 105.0 | 75.0 | 26.0 | B-RB85M8N |
| NPT 3 | M90x1.5 | 43.0 | 20.0 | 95.0 | 105.0 | 75.0 | 26.0 | B-RB8M8N |
| NPT 3 | M100x1.5 | 43.0 | 20.0 | 110.0 | 123.0 | 75.0 | 26.0 | B-RB9M8N |
| NPT 3 | M110x1.5 | 43.0 | 20.0 | 120.0 | 134.0 | 75.0 | 26.0 | B-RB10M8N |
| NPT 3 1/2 | M100x1.5 | 43.0 | 20.0 | 110.0 | 123.0 | 87.0 | 26.0 | B-RB9M9N |
| NPT 3 1/2 | M110x1.5 | 43.0 | 20.0 | 120.0 | 134.0 | 87.0 | 26.0 | B-RB10M9N |
| NPT 4 | M110x1.5 | 44.0 | 20.0 | 120.0 | 134.0 | 100.0 | 26.0 | B-RB10M10N |
