| 适用环境 | · I类--煤矿，II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex I M, Ex II 2GD · Ex db I Mb, Ex eb I Mb · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db · IP66/68 |
| IECEx防护类别代码 | · Ex db I Mb and Ex eb I Mb · Ex db IIC Gb and Ex eb IIC Gb · Ex tb IIIC Db · IP66/68 |
| UL防护类别代码 | · Class I, Zone 1, AEx d IIC Gb, AEx e IIC Gb · Zone 21, AEx tb IIIC Db |
| IP防护等级 | · IP66，IP68（5 bar，30 min） |
| Type防护等级 | · Type 4X |
| 电缆密封接头材质 | · 黄铜镀镍，不锈钢316L |
| 密封材料 | · 氯丁橡胶，硅胶 |
| 工作温度 | · 氯丁橡胶: -40°C to +100°C · 硅胶: -60°C to +130°C |
| 螺纹类型 | · 公制，NPT（其他如 PG、G 可按要求提供） |
| 附件 | · 锁紧螺母，垫圈 |
| 注意 ⚠️ | · 所有附件需单独订购 |
全球防爆认证（ATEX, IECEx, UL, CSA, EAC, CCC, DNV,INMETRO等）

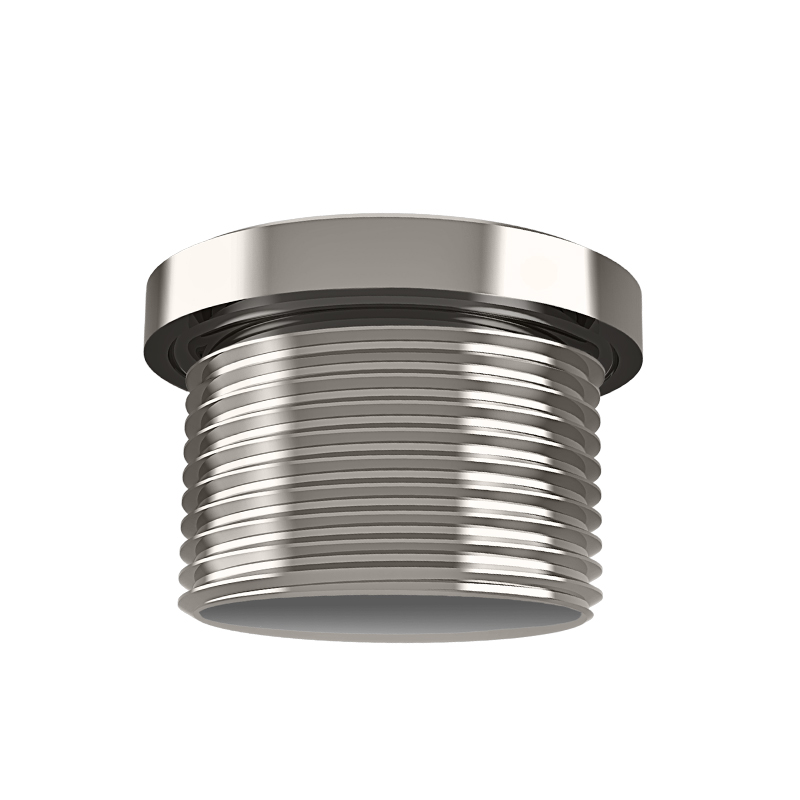

Class I Zone 1, 21 & Zone 2, 22. Ex db, eb, tb
适用于存在气体和粉尘的爆炸性环境ZONE1/ZONE2，ZONE21/ZONE 22
适用Class I Zone 1, Class I Zone 21
适用环境温度-60°C ~ +130°C
IP66/IP68最高防护等级

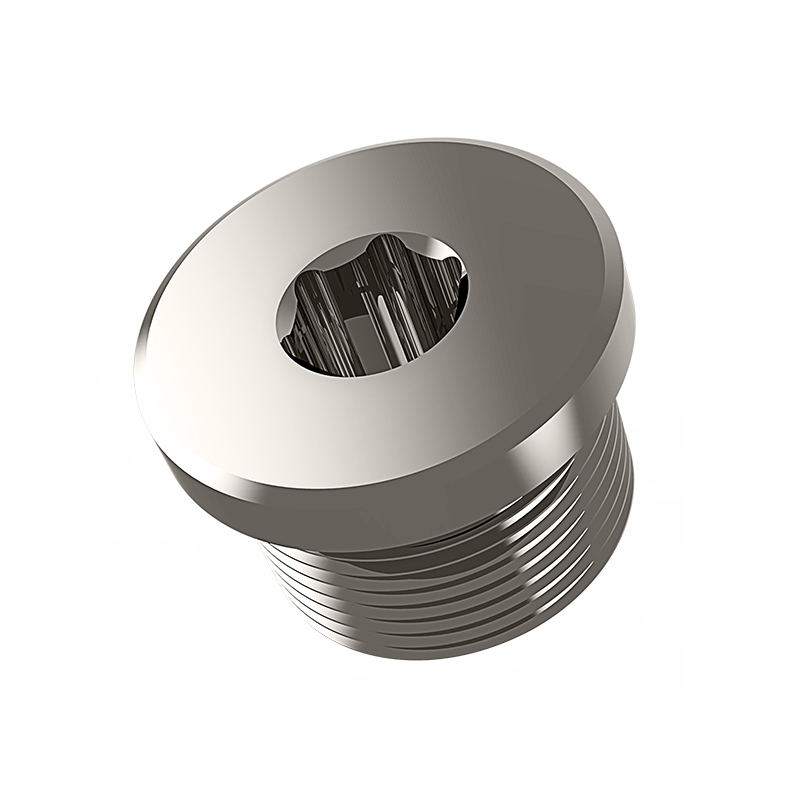

封闭防爆设备未使用的电缆入口，并维持设备的防爆及防护性能。内六角设计更节省空间，也更易于安装。
需使用内六角扳手安装。
For applications in explosive environments.
For Group II & III (Gas & Dust) - Ex-d/e.
Allen screw version.
Can be used with intrinsically safe circuits.
Up-to-date international approvals.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | CESI 13 ATEX 066X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx CES 13.0022X | IEC 60079-0, 1, 7, 31 |
 |
UL | E467237 | UL514B, UL50E, UL 2225, CSA22.2 No 18.3-12, No 94.2-15, No. 14-18 |
|
UL | E493186 | UL 60079-0, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 17.0055 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WU | |
 |
UKCA | CML 22UKEX1184X | |
 |
CCC | No 2021312313000414 |

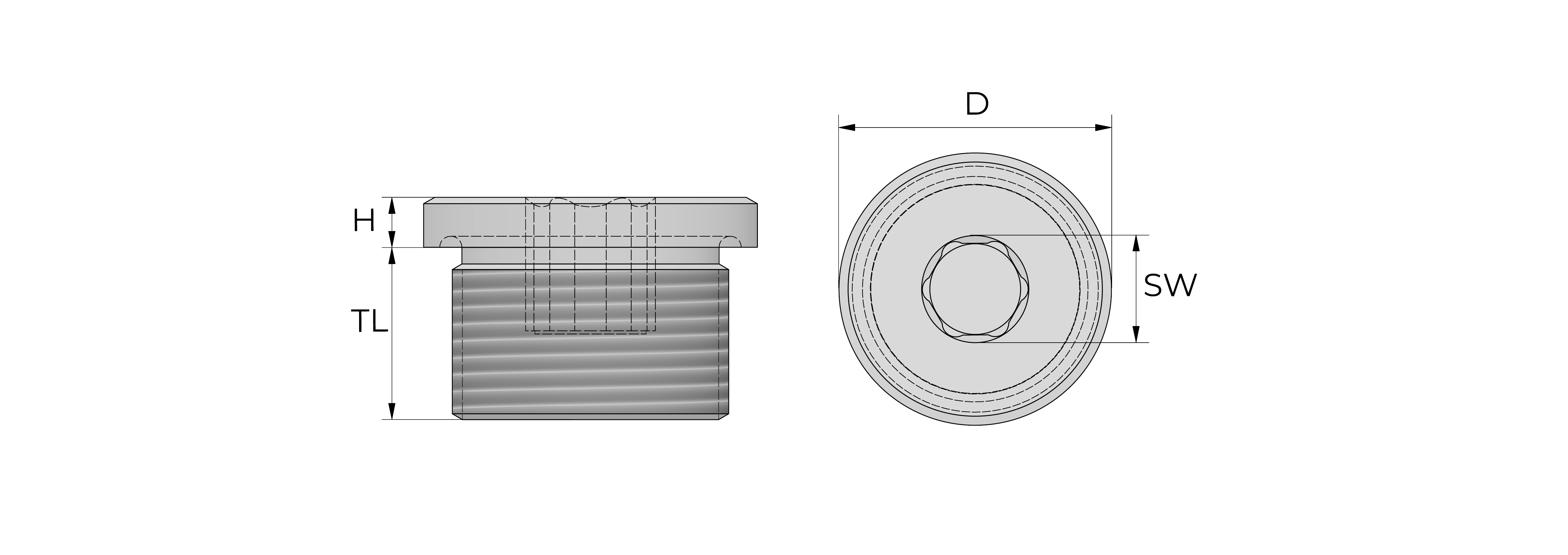

| Thread Size | TL | SW | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|
| M16x1.5 | 15.5 | 10 | 22.0 | 3.5 | MB-TS01M |
| M20x1.5 | 15.5 | 10 | 26.0 | 4.5 | MB-TS1M |
| M25x1.5 | 15.5 | 10 | 30.0 | 4.5 | MB-TS2M |
| M32x1.5 | 15.5 | 14 | 37.0 | 4.5 | MB-TS3M |
| M40x1.5 | 17.5 | 14 | 46.0 | 4.5 | MB-TS4M |
| M50x1.5 | 17.5 | 14 | 56.0 | 4.5 | MB-TS5M |
| M60x1.5 | 17.5 | 14 | 68.0 | 4.5 | MB-TS60M |
| M63x1.5 | 17.5 | 14 | 70.0 | 4.5 | MB-TS6M |
| M70x1.5 | 20.0 | 14 | 78.0 | 4.5 | MB-TS70M |
| M75x1.5 | 20.0 | 14 | 83.0 | 4.5 | MB-TS7M |
| M80x1.5 | 20.0 | 14 | 88.0 | 5.0 | MB-TS80M |
| M85x1.5 | 20.0 | 14 | 94.0 | 5.0 | MB-TS85M |
| M90x1.5 | 20.0 | 16 | 98.0 | 5.0 | MB-TS8M |
| M100x1.5 | 20.0 | 16 | 108.0 | 5.0 | MB-TS9M |
| M110x1.5 | 20.0 | 16 | 118.0 | 5.0 | MB-TS10M |
| Thread Size | TL | SW | Outer Ø 'D' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|
| NPT 3/8 | 15.0 | 6 | - | - | B-TS01N |
| NPT 1/2 | 20.0 | 10 | - | - | B-TS1N |
| NPT 3/4 | 20.0 | 10 | - | - | B-TS2N |
| NPT 1 | 25.0 | 14 | - | - | B-TS3N |
| NPT 1 1/4 | 25.0 | 14 | - | - | B-TS4N |
| NPT 1 1/2 | 25.0 | 14 | - | - | B-TS5N |
| NPT 2 | 25.0 | 14 | - | - | B-TS6N |
| NPT 2 1/2 | 32.0 | 14 | - | - | B-TS7N |
| NPT 3 | 32.0 | 16 | - | - | B-TS8N |
| NPT 3 1/2 | 32.0 | 16 | - | - | B-TS9N |
| NPT 4 | 33.0 | 16 | - | - | B-TS10N |
