| 适用环境 | · I类--矿井，II类--工厂气体，III类--粉尘 · Zone 1, Zone 2 和 Zone 21, Zone 22 |
| ATEX防护类别代码 | · Ex I M, Ex II 2GD · Ex db I Mb, Ex eb I Mb · Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db, IP66/68 |
| IECEx防护类别代码 | · Ex db I Mb, Ex eb I Mb · Ex db IIC Gb, Ex eb IIC Gb · Ex tb IIIC Db · IP66/68 |
| IP防护等级 | · IP66，IP68（5 bar，30 min） |
| 电缆密封接头材质 | · 黄铜镀镍，不锈钢316L |
| 密封材料 | · 氯丁橡胶，硅胶 |
| 工作温度 | · 氯丁橡胶: -40°C to +100°C · 硅胶: -60°C to +130°C |
| 螺纹类型 | · 公制, NPT, PG, G |
全球防爆认证（ATEX, IECEx, EAC, CCC, DNV, INMETRO等）
适用于存在气体和粉尘的爆炸性环境ZONE1/ZONE2，ZONE21/ZONE 22
适用环境温度-60°C ~ +130°C
IP66/IP68最高防护等级

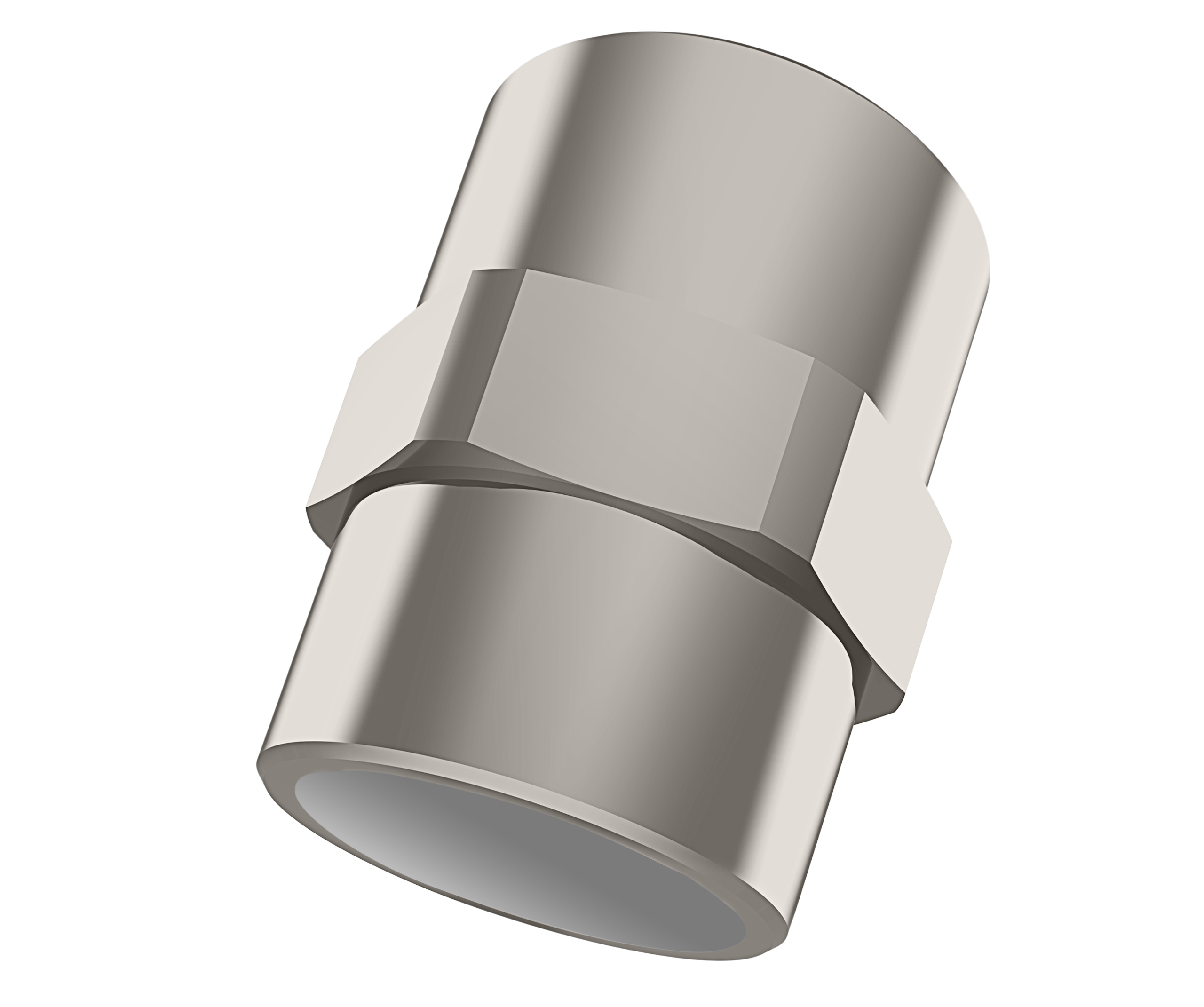

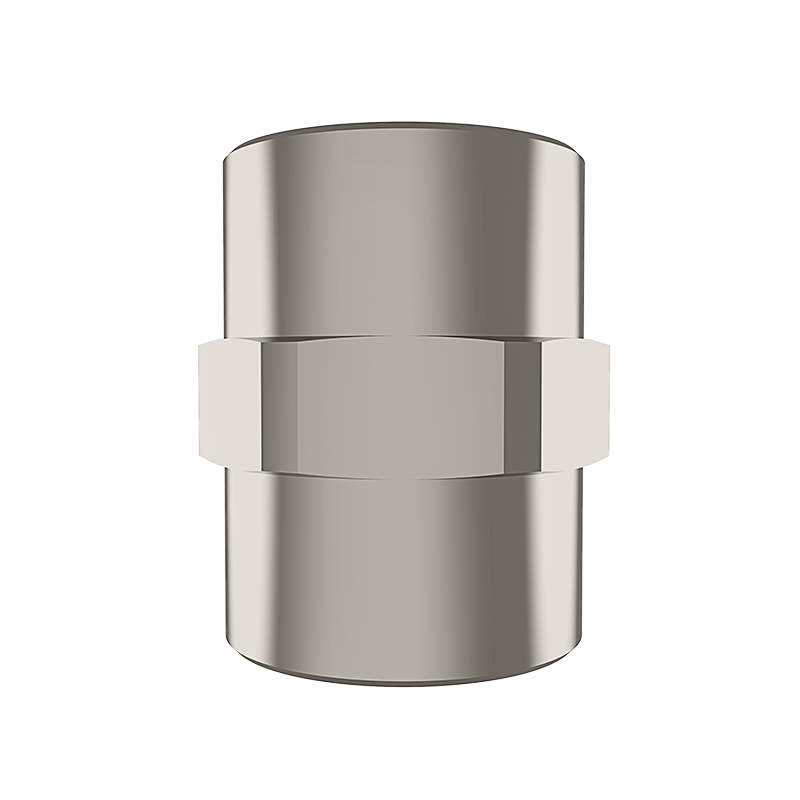

用于各种内螺纹类型和尺寸的转换，可用于本安回路。
For applications in explosive environments.
For Group II & III (Gas & Dust) - Ex-d/e.
Couplers for the transition of different thread types and sizes.
Can be used with intrinsically safe circuits.
Up-to-date international approvals.
| 认证图标 | 证书名称 | 证书号 | 符合标准 |
|---|---|---|---|
 |
ATEX | CESI 13 ATEX 066X | EN 60079-0, 1, 7, 31 |
 |
IECEx | IECEx CES 13.0022X | IEC 60079-0, 1, 7, 31 |
 |
EAC | RU-CTR.AA87.B.01120/23 | ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31 |
 |
INMETRO | DNV 17.0055 X | ABNT NBR IEC 60079-0, 1, 7, 31 |
 |
DNV Type Approval | TAE00003WU | |
 |
UKCA | CML 22UKEX1184X | |
 |
CCC | No 2021312313000413 |

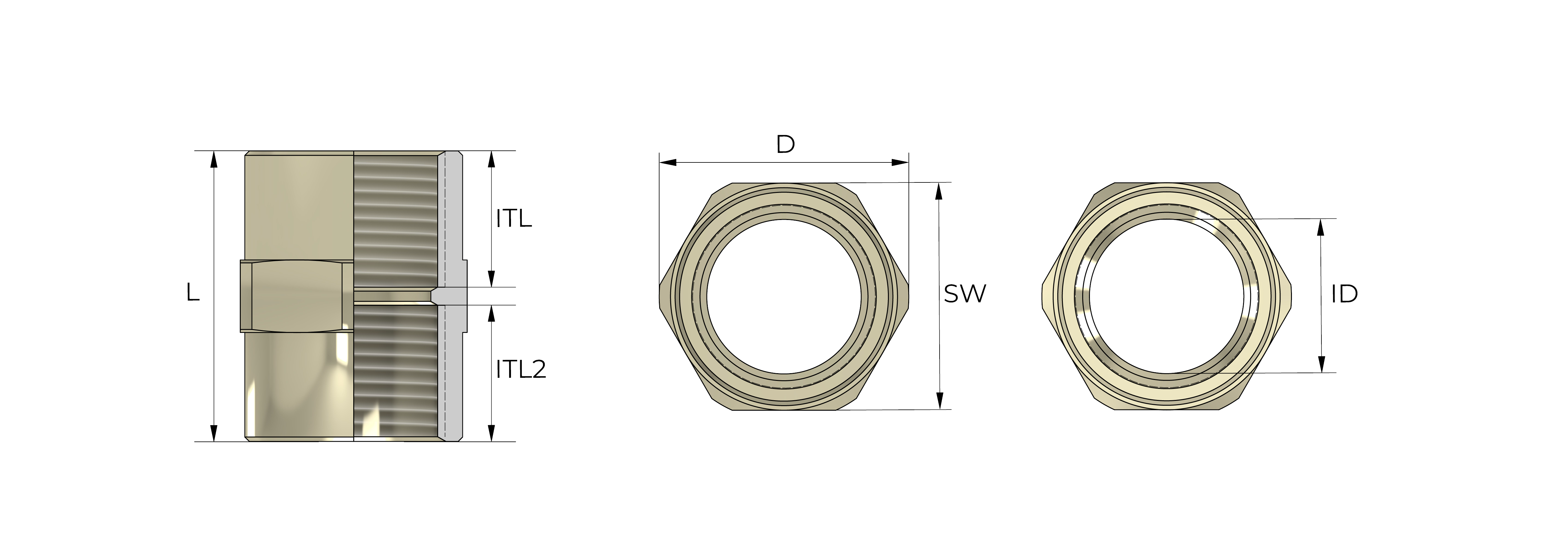

| Thread Size M | Thread Size F | TL | ITL | SW | Outer Ø 'D' | Inner Ø 'ID' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| M16x1.5 | M16x1.5 | 16.0 | 16.0 | 20 | 22.0 | 13.5 | 37.0 | B-RM01M01M |
| M20x1.5 | M16x1.5 | 16.0 | 16.0 | 25 | 27.5 | 13.5 | 36.0 | B-RM1M01M |
| M20x1.5 | M20x1.5 | 16.0 | 16.0 | 25 | 27.5 | 17.0 | 36.0 | B-RM1M1M |
| M25x1.5 | M16x1.5 | 18.0 | 16.0 | 32 | 35.0 | 13.5 | 41.0 | B-RM2M01M |
| M25x1.5 | M20x1.5 | 18.0 | 16.0 | 32 | 35.0 | 17.0 | 39.0 | B-RM2M1M |
| M25x1.5 | M25x1.5 | 18.0 | 18.0 | 32 | 35.0 | 22.0 | 41.0 | B-RM2M2M |
| M32x1.5 | M20x1.5 | 20.0 | 16.0 | 36 | 39.5 | 17.0 | 44.0 | B-RM3M1M |
| M32x1.5 | M25x1.5 | 20.0 | 18.0 | 36 | 39.5 | 22.0 | 44.0 | B-RM3M2M |
| M32x1.5 | M32x1.5 | 20.0 | 20.0 | 36 | 39.5 | 29.0 | 44.0 | B-RM3M3M |
| M40x1.5 | M25x1.5 | 20.0 | 18.0 | 45 | 50.0 | 22.0 | 47.0 | B-RM4M2M |
| M40x1.5 | M32x1.5 | 20.0 | 20.0 | 45 | 50.0 | 29.0 | 46.0 | B-RM4M3M |
| M40x1.5 | M40x1.5 | 20.0 | 20.0 | 45 | 50.0 | 37.0 | 44.0 | B-RM4M4M |
| M50x1.5 | M32x1.5 | 20.0 | 20.0 | 55 | 61.0 | 29.0 | 50.0 | B-RM5M3M |
| M50x1.5 | M40x1.5 | 20.0 | 20.0 | 55 | 61.0 | 37.0 | 46.0 | B-RM5M4M |
| M50x1.5 | M50x1.5 | 20.0 | 20.0 | 55 | 61.0 | 47.0 | 44.0 | B-RM5M5M |
| M60x1.5 | M40x1.5 | 20.0 | 20.0 | 68 | 75.0 | 36.0 | 51.0 | B-RM60M4M |
| M60x1.5 | M50x1.5 | 20.0 | 20.0 | 68 | 75.0 | 47.0 | 47.0 | B-RM60M5M |
| M60x1.5 | M60x1.5 | 20.0 | 20.0 | 68 | 75.0 | 55.0 | 46.0 | B-RM60M60M |
| M63x1.5 | M50x1.5 | 20.0 | 20.0 | 68 | 75.0 | 47.0 | 47.0 | B-RM6M5M |
| M63x1.5 | M60x1.5 | 20.0 | 20.0 | 68 | 75.0 | 55.0 | 46.0 | B-RM6M60M |
| M63x1.5 | M63x1.5 | 20.0 | 20.0 | 68 | 75.0 | 60.0 | 44.0 | B-RM6M6M |
| M75x1.5 | M63x1.5 | 20.0 | 20.0 | 80 | 88.5 | 60.0 | 47.0 | B-RM7M6M |
| M75x1.5 | M70x1.5 | 20.0 | 20.0 | 80 | 88.5 | 65.0 | 47.0 | B-RM7M70M |
| M75x1.5 | M75x1.5 | 20.0 | 20.0 | 80 | 88.5 | 72.0 | 44.0 | B-RM7M7M |
| M80x1.5 | M70x1.5 | 20.0 | 20.0 | 90 | 100.0 | 65.0 | 49.0 | B-RM80M70M |
| M80x1.5 | M75x1.5 | 20.0 | 20.0 | 90 | 100.0 | 72.0 | 46.0 | B-RM80M7M |
| M80x1.5 | M80x1.5 | 20.0 | 20.0 | 90 | 100.0 | 75.0 | 46.0 | B-RM80M80M |
| M85x1.5 | M75x1.5 | 20.0 | 20.0 | 95 | 105.0 | 72.0 | 47.0 | B-RM85M7M |
| M85x1.5 | M80x1.5 | 20.0 | 20.0 | 95 | 105.0 | 75.0 | 47.0 | B-RM85M80M |
| M85x1.5 | M85x1.5 | 20.0 | 20.0 | 95 | 105.0 | 80.0 | 46.0 | B-RM85M85M |
| M90x1.5 | M80x1.5 | 20.0 | 20.0 | 95 | 105.0 | 75.0 | 49.0 | B-RM8M80M |
| M90x1.5 | M85x1.5 | 20.0 | 20.0 | 95 | 105.0 | 80.0 | 47.0 | B-RM8M85M |
| M90x1.5 | M90x1.5 | 20.0 | 20.0 | 95 | 105.0 | 87.0 | 44.0 | B-RM8M8M |
| M100x1.5 | M85x1.5 | 20.0 | 20.0 | 110 | 123.0 | 80.0 | 51.0 | B-RM9M85M |
| M100x1.5 | M90x1.5 | 20.0 | 20.0 | 110 | 123.0 | 87.0 | 48.0 | B-RM9M8M |
| M100x1.5 | M100x1.5 | 20.0 | 20.0 | 110 | 123.0 | 95.0 | 46.0 | B-RM9M9M |
| M110x1.5 | M90x1.5 | 20.0 | 20.0 | 120 | 133.5 | 87.0 | 51.0 | B-RM10M8M |
| M110x1.5 | M100x1.5 | 20.0 | 20.0 | 120 | 133.5 | 95.0 | 50.0 | B-RM10M9M |
| M110x1.5 | M110x1.5 | 20.0 | 20.0 | 120.0 | 133.5 | 107.0 | 44.0 | B-RM10M10M |
| Thread Size M | Thread Size F | TL | ITL | SW | Outer Ø 'D' | Inner Ø 'ID' | Max. Height 'H' | Product Code |
|---|---|---|---|---|---|---|---|---|
| NPT 3/8 | NPT 3/8 | 13.0 | 13.0 | 20 | 22.0 | 12.5 | 30.0 | B-RM01N01N |
| NPT 1/2 | NPT 3/8 | 17.0 | 13.0 | 25 | 27.5 | 13.0 | 35.0 | B-RM1N01N |
| NPT 1/2 | NPT 1/2 | 17.0 | 17.0 | 25 | 27.5 | 16.0 | 38.0 | B-RM1N1N |
| NPT 3/4 | NPT 3/8 | 18.0 | 13.0 | 32 | 35.0 | 12.5 | 38.0 | B-RM2N01N |
| NPT 3/4 | NPT 1/2 | 18.0 | 17.0 | 32 | 35.0 | 16.0 | 40.0 | B-RM2N1N |
| NPT 3/4 | NPT 3/4 | 18.0 | 18.0 | 32 | 35.0 | 21.0 | 40.0 | B-RM2N2N |
| NPT 1 | NPT 1/2 | 22.0 | 17.0 | 36 | 39.5 | 16.0 | 47.0 | B-RM3N1N |
| NPT 1 | NPT 3/4 | 22.0 | 18.0 | 36 | 39.5 | 21.0 | 45.0 | B-RM3N2N |
| NPT 1 | NPT 1 | 22.0 | 22.0 | 36 | 39.5 | 27.0 | 48.0 | B-RM3N3N |
| NPT 1 1/4 | NPT 3/4 | 22.0 | 18.0 | 45 | 50.0 | 21.0 | 49.0 | B-RM4N2N |
| NPT 1 1/4 | NPT 1 | 22.0 | 22.0 | 45 | 50.0 | 27.0 | 51.0 | B-RM4N3N |
| NPT 1 1/4 | NPT 1 1/4 | 18.0 | 22.0 | 45 | 50.0 | 36.0 | 49.0 | B-RM4N4N |
| NPT 1 1/2 | NPT 1 | 22.0 | 22.0 | 55 | 61.0 | 27.0 | 53.0 | B-RM5N3N |
| NPT 1 1/2 | NPT 1 1/4 | 22.0 | 22.0 | 55 | 61.0 | 35.0 | 51.0 | B-RM5N4N |
| NPT 1 1/2 | NPT 1 1/2 | 22.0 | 22.0 | 55 | 61.0 | 41.5 | 49.0 | B-RM5N5N |
| NPT 2 | NPT 1 1/4 | 22.0 | 22.0 | 65 | 72.0 | 35.0 | 55.0 | B-RM6N4N |
| NPT 2 | NPT 1 1/2 | 22.0 | 22.0 | 65 | 72.0 | 41.5 | 53.0 | B-RM6N5N |
| NPT 2 | NPT 2 | 22.0 | 22.0 | 65 | 72.0 | 53.5 | 49.0 | B-RM6N6N |
| NPT 2 1/2 | NPT 1 1/2 | 30.0 | 22.0 | 80 | 88.5 | 41.5 | 64.0 | B-RM7N5N |
| NPT 2 1/2 | NPT 2 | 32.0 | 22.0 | 80 | 88.5 | 53.5 | 61.0 | B-RM7N6N |
| NPT 2 1/2 | NPT 2 1/2 | 30.0 | 30.0 | 80 | 88.5 | 64.0 | 66.0 | B-RM7N7N |
| NPT 3 | NPT 2 | 32.0 | 22.0 | 95 | 105.0 | 53.5 | 68.0 | B-RM8N6N |
| NPT 3 | NPT 2 1/2 | 32.0 | 30.0 | 95 | 105.0 | 64.0 | 72.0 | B-RM8N7N |
| NPT 3 | NPT 3 | 32.0 | 32.0 | 95 | 105.0 | 80.0 | 69.0 | B-RM8N8N |
| NPT 3 1/2 | NPT 2 1/2 | 34.0 | 30.0 | 110 | 123.0 | 64.0 | 79.0 | B-RM9N7N |
| NPT 3 1/2 | NPT 3 | 34.0 | 32.0 | 110 | 123.0 | 80.0 | 76.0 | B-RM9N8N |
| NPT 3 1/2 | NPT 3 1/2 | 34.0 | 34.0 | 110 | 123.0 | 90.0 | 76.0 | B-RM9N9N |
| NPT 4 | NPT 3 | 34.0 | 32.0 | 120 | 133.5 | 80.0 | 74.0 | B-RM10N8N |
| NPT 4 | NPT 3 1/2 | 34.0 | 34.0 | 120 | 133.5 | 90.0 | 79.0 | B-RM10N9N |
| NPT 4 | NPT 4 | 34.0 | 34.0 | 120 | 133.5 | 105.0 | 73.0 | B-RM10N10N |
